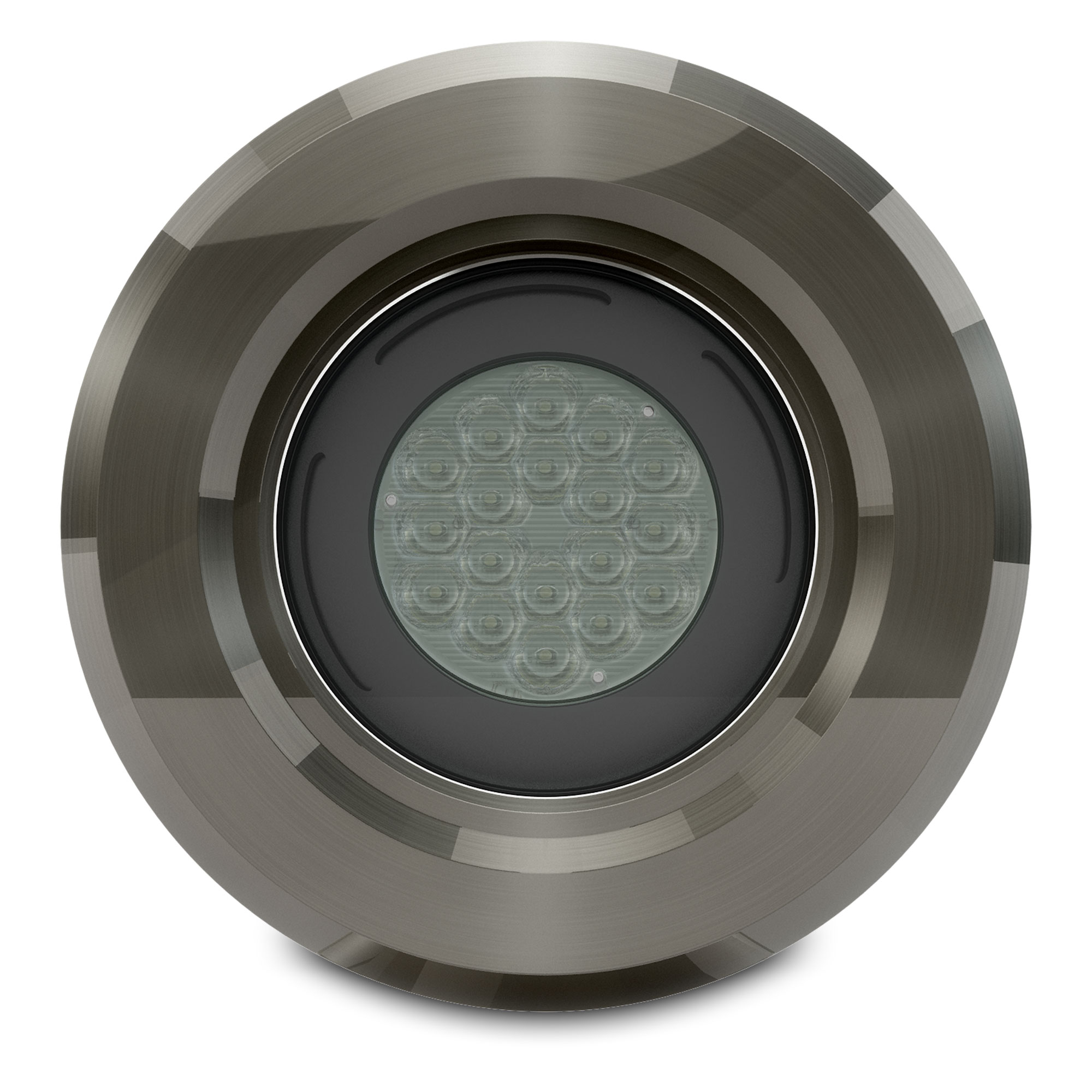

F-SERIES F2 HD GEN2 MK2

Overview

The F-Series HD Gen2 mk2 offers a secure future proof solution for underwater lighting for large superyachts.

Trusted by yacht builders worldwide, the F-Series is the ultimate in underwater lighting design and technology. The lights are designed and manufactured to the highest standard and have no movable parts that could be subject to vibration and are solid state.

Power options are available as individual AC drivers and AC driver cabinets whereby all the electronics can be centrally located and can run 3 to 6 lights per cabinet.

Overview
Collimators

Collimators

Unlike other lights which do not control light output leading to loss of light and “hot spots”, our collimator controls the beam so light is only directed straight out into the direction needed, minimizing light loss and maximising power efficiency.

Hull Angling

F-Series lights and cofferdams can be angled up to 50° to compensate for the hull form.

For angles greater than 25°, typically up to 50°, a combination of cofferdam and light engine angling is used to make for the best solution. For example a 30° hull counter angle is best achieved with 5° in the cofferdam and 25° in the light engine.

Hull Angling
DMX Control

DMX Control

The F-Series can be controlled by integrating into the yachts existing system, such as a Crestron or Lutron lighting control. The lights can be managed through any on board touch panel or controlled via 3rd party devices such as a smartphone or tablet via wifi. This allows further customisation with additional features such as dimming and panic mode operations.

F-SERIES F2 HD GEN2 MK2

Features

  • 60° Top Beam 60° Top Beam
  • Up to 8,400 Fixture Lumens Up to 8,400 Fixture Lumens
  • 20° Side Beam 20° Side Beam
  • Elliptical Beam Elliptical Beam
  • DMX Lighting Control
  • 90-270V AC optional input power
  • Wider Diffused Beam Option
  • Internal Hull Counter Angling 0˚ to 50˚
  • Mix and match with L, F and M Series ranges

Colours Available

  • Midnight Blue
  • Ultra White
  • Warm White

Please request a quote for bespoke Superyacht pricing.

Technical

Input Voltage 110/230V AC
Min / max operating voltage 90 - 270
Power consumption 80 watts
Max light power (Per light) 60 watts
Current / Amp Draw 110V AC 0.7A / 230v AC 0.35A
3 Driver Cabinet 110V AC 2.3A / 230V AC 1.1A
4 Driver Cabinet 110V AC 2.9A / 230V AC 1.4A
5 Driver Cabinet 110V AC 3.5A / 230V AC 1.7A
6 Driver Cabinet 110V AC 4.3A / 230V AC 2A

Physical

Driver type External
Cabinet type External
Driver IP Rating IP66
Cabinet IP Rating IP44
DMX Compatible Yes
Transient spike protection Yes
EMC Compliant Yes
