L-SERIES L1 HD GEN2 MK2

Overview

The L-Series HD Gen2 mk2 offers a secure future proof solution for fuel, water tanks and other void areas.

Trusted by yacht builders worldwide, the L-Series is the ultimate in underwater lighting design and technology. The lights are designed and manufactured to the highest standard and have no movable parts that could be subject to vibration and are solid state.

Overview

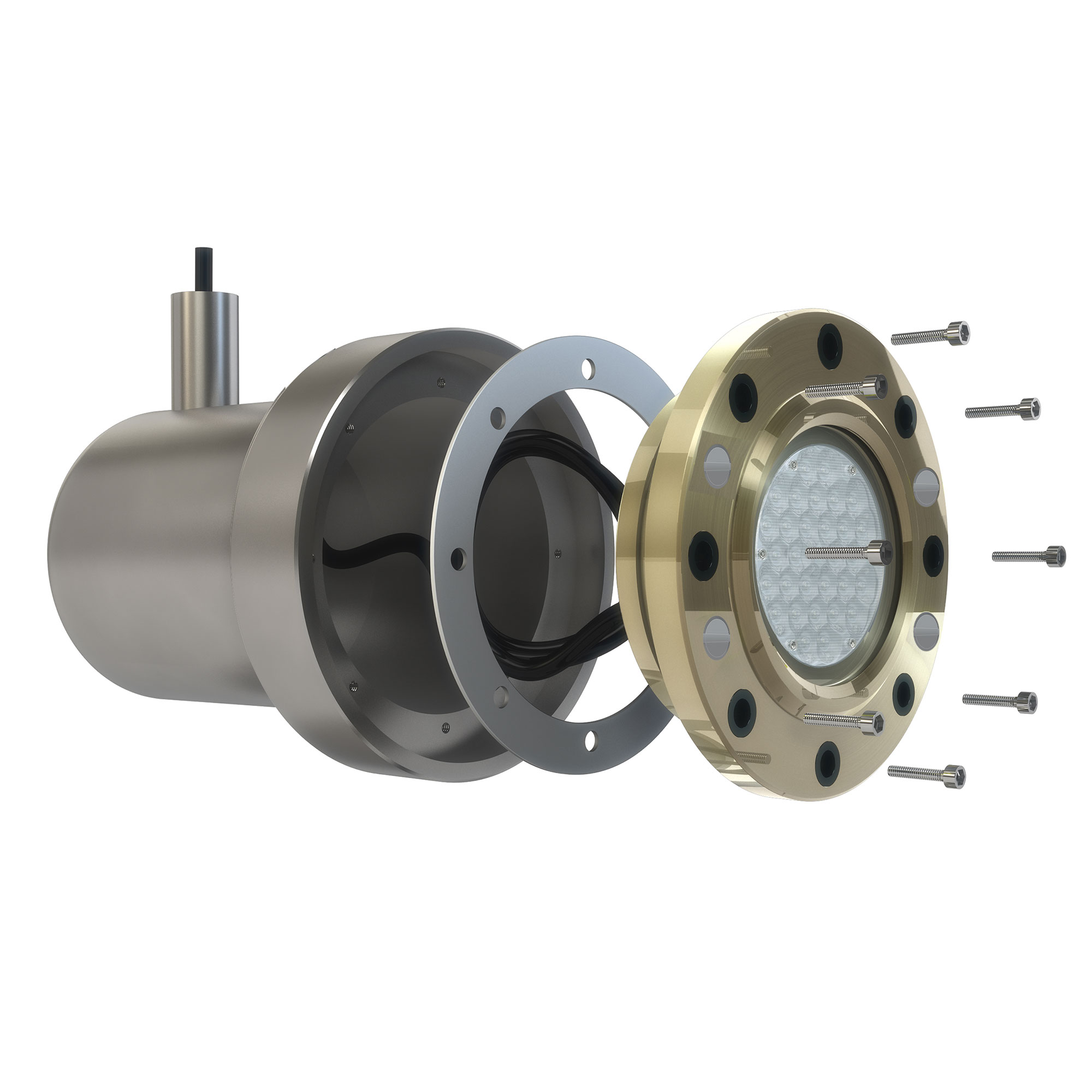

In-water Removal

In-water Removal

The L-Series range brings a major advancement in underwater lighting with the ability to fit in fuel and water tanks and in areas where access to the light from inside is the yacht is not achievable.

It is the only light in the market that can be removed into the water without the yacht needing to be hauled. This Lloyds approved fixture needs no rear internal access and is a sealed and safe unit.

Light and Angling

The lights can achieve up to 25° counter hull angling in 5° increments resulting in an even lighting effect around the yacht.

Light and Angling
DMX Control

DMX Control

The L-Series can be controlled by integrating into the yachts existing system, such as a Crestron or Lutron lighting control. The lights can be managed through any on board touch panel or controlled via 3rd party devices such as a smartphone or tablet via wifi. This allows further customisation with additional features such as dimming and panic mode operations.

L-SERIES L1 HD GEN2 MK2

Features

  • 60° Top Beam 60° Top Beam
  • Up to 14,000 Fixture Lumens Up to 14,000 Fixture Lumens
  • 20° Side Beam 20° Side Beam
  • Elliptical Beam Elliptical Beam
  • DMX Lighting Control
  • Unique ability to change the fixture in the water
  • 90-270V AC optional input power
  • 140˚ Diffused Beam Option
  • Mix and match with L, F and M Series ranges

Colours Available

  • Midnight Blue
  • Ultra White
  • Warm White

Please request a quote for bespoke Superyacht pricing.

Technical

Input Voltage 110/230V AC
Min / max operating voltage 90 - 270
Power consumption 140 watts
Max light power (Per light) 120 watts
Current / Amp Draw 110V AC 1.3A / 230v AC 0.6A
3 Driver Cabinet 110V AC 3.3A / 230V AC 1.6A
4 Driver Cabinet 110V AC 4.4A / 230V AC 2.1A
5 Driver Cabinet 110V AC 5.3A / 230V AC 2.5A
6 Driver Cabinet 110V AC 6.3A / 230V AC 3A

Physical

Driver type External
Cabinet type External
IP Rating of Unit IP66
Cabinet IP Rating IP44
DMX Compatible Yes
Transient spike protection Yes
EMC Compliant Yes
