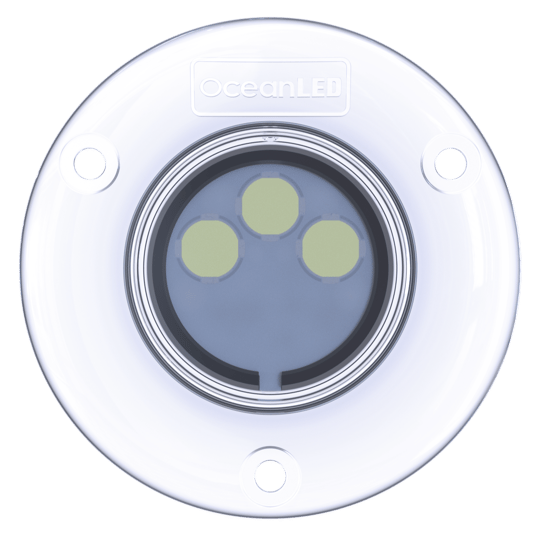

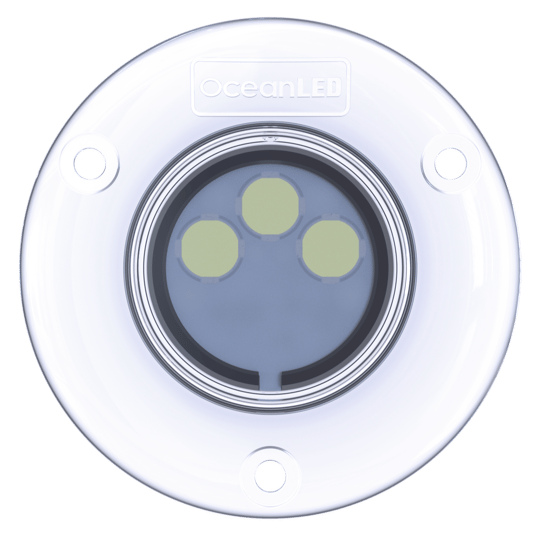

Discover D3

The Discover D3 takes reliability to the next level. As our marketing team once famously said, “the D3 is like a tank”. Specifically designed for hulls where a flush-mounted light is preferred, space is in short supply, or an ultra-durable light solution is required, the D3 uses a molded single-piece Grilamid bezel, making water ingress impossible from the light face.

Benefiting from our signature underwater optics and the coveted OceanLED light blade, the Discover D3 outperforms other lights with twice its power, producing a lighting effect well beyond its 700 fixture lumen headline figure.

Colours available:
Product features:
ICONS_PRODUCT_LUMENS
700 Fixture Lumens
Signature Optics
Signature Underwater Optics
Ultra Reliable
Ultra Reliable
Easy Install
Easy Install
Built In Driver
Built-In Driver
Suitable for us Above Water
Product variants:
SKU Description
D3009W Discover D3 Flush Mount Ultra White
D3009B Discover D3 Flush Mount Midnight Blue
UNRIVALLED PERFORMANCE

Product Highlights

The Grilamid construction makes the D3 UV and sea water resistant, meaning no degradation over time. The unique built-in rear submersion protection system protects the light in cases where the stern may flood, and for your complete peace of mind, the D3 carries an IP69K rating for water ingress protection.

700 Fixture Lumens
Our signature underwater optics supercharge performance.
Robust Grilamid Construction
Built like a tank and ready for the harshest environments.

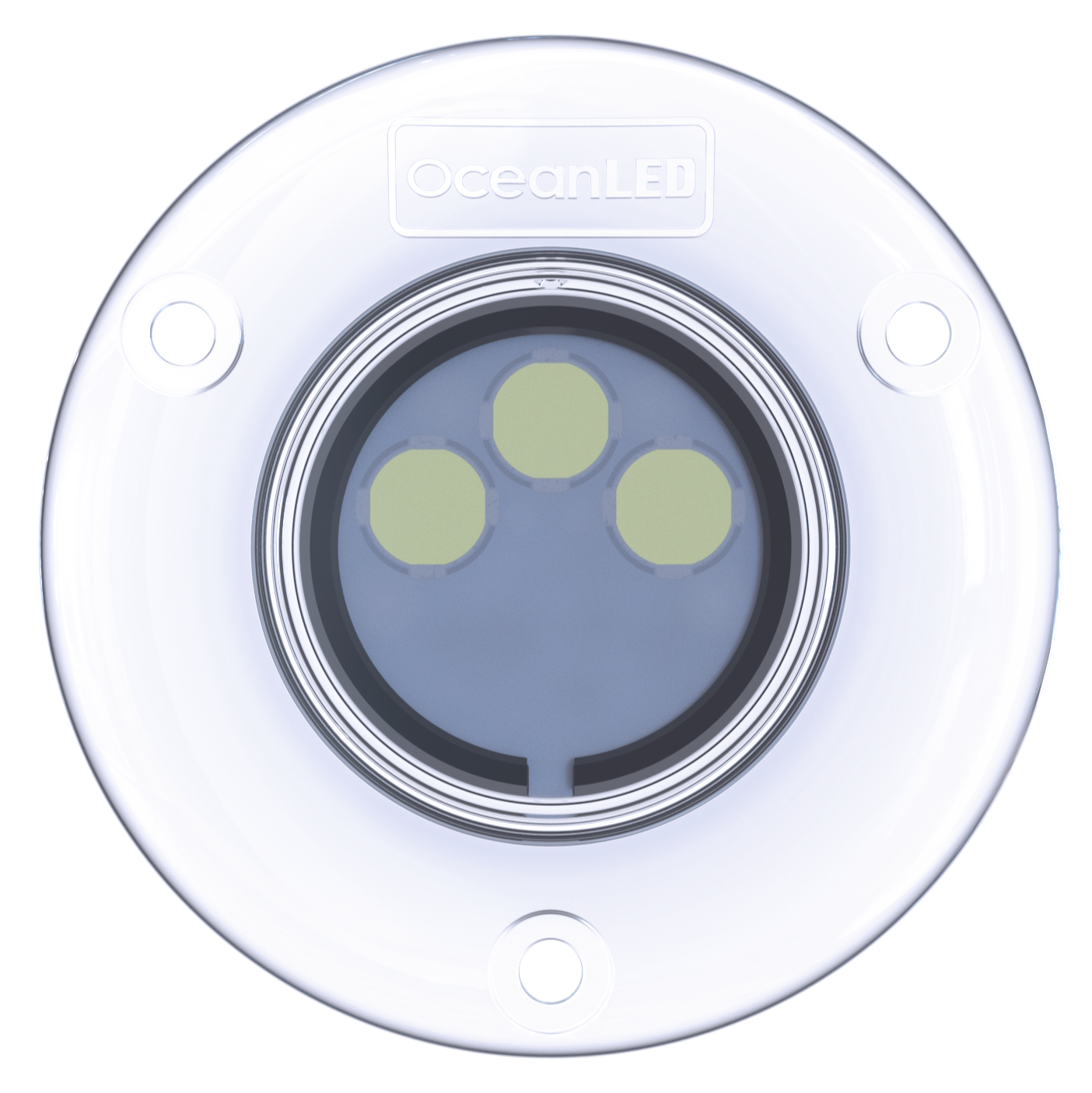

Moulded Single Piece Bezel
Making water ingress impossible through the light face.
Suitable For Use Above Water
Thanks to our intelligent thermal control features.

Technical Details & Documents

Got a question? Speak to our team of experts to help you with your lighting choice
  • Fixture Lumens 700
    Beam Angle 90° x 20° Blade
    Min-Max Operating voltage DC 10-30V DC
    Current / Amp draw (12V DC) 0.7A@12V DC
    Current / Amp draw (24V DC): 0.37A@24V DC
    IP Rating IP69k
    Rear Temporary Submersion Protection Yes
    Active Thermal Control Yes



  • Total weight 150g (0.11lbs)
    Total Diameter (Including Bezel) 70mm (2.76”)
    Diameter Of Body 40mm (1.57”)
    Cable length 2m (79”)
    Hole Cut-Out 44mm (1.73”)
    Material (Bezel) UV protected, anti corrosive polymer



  • Boat size Up to 10m (33’)
    Transom / Hull spacing 0.5 - 1.2m (2-4’)
    Installation depth below waterline 150-200mm (6-8”)
    Maximum Recommended Hull Thickness 50mm (2”)



  • Product Name Product SKU
    4 Way V DC Power Junction Box 019901
    D3 & X-Series Isolating Mounting Kit 019913
