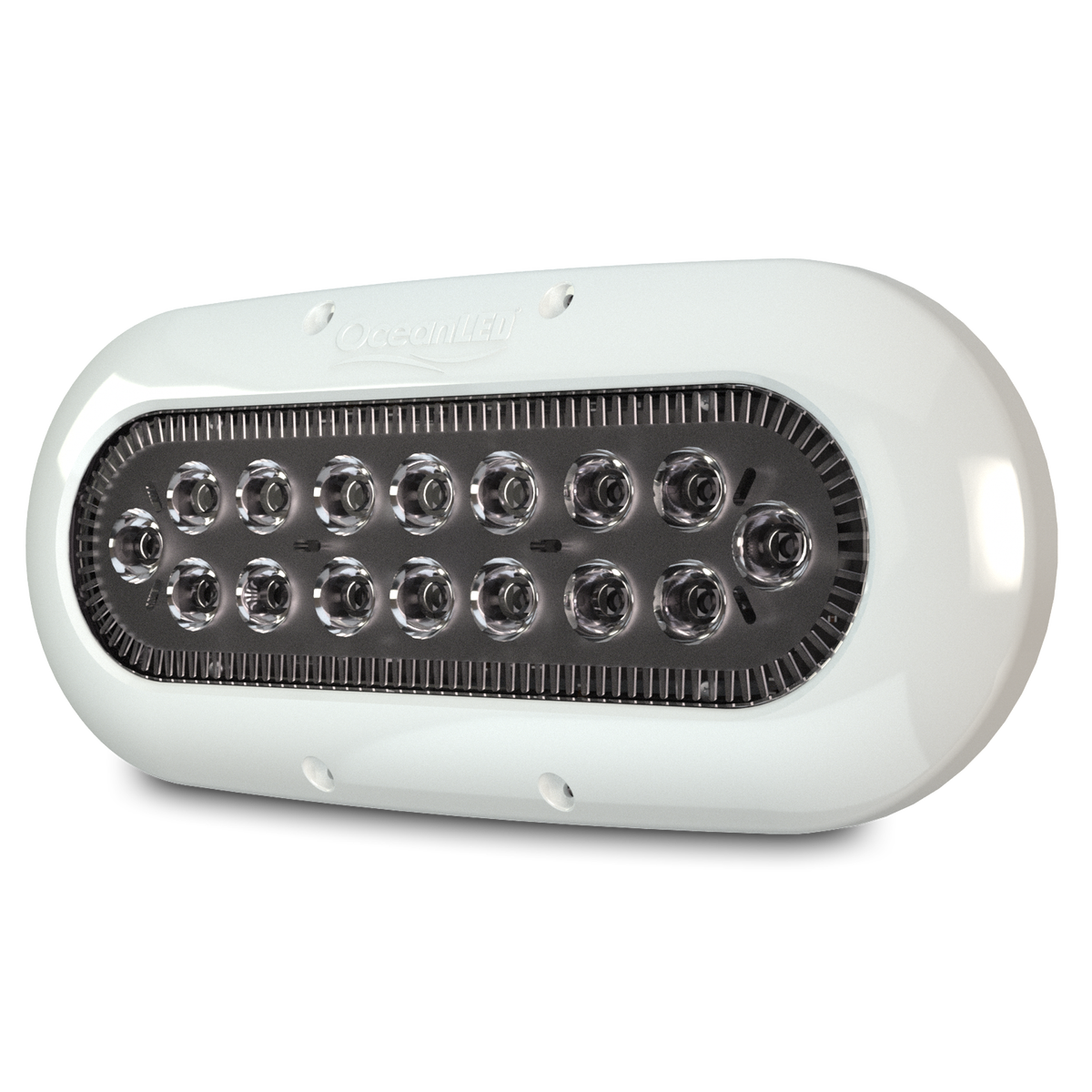

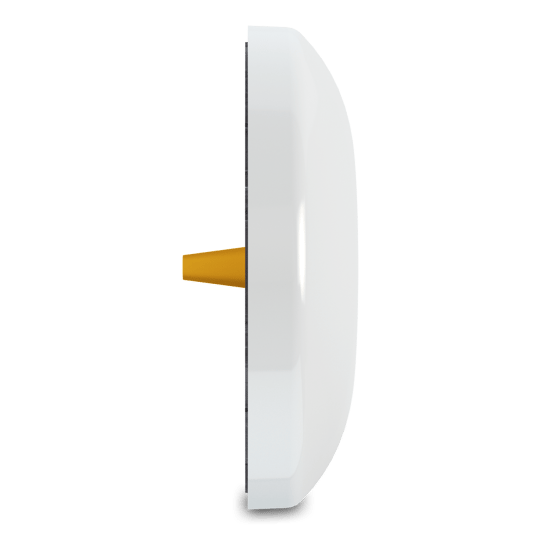

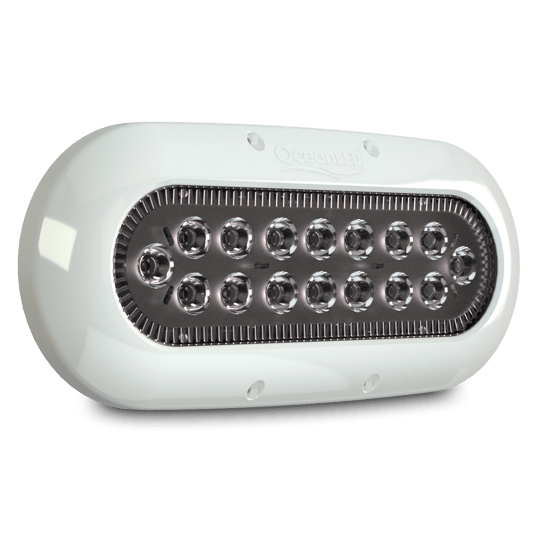

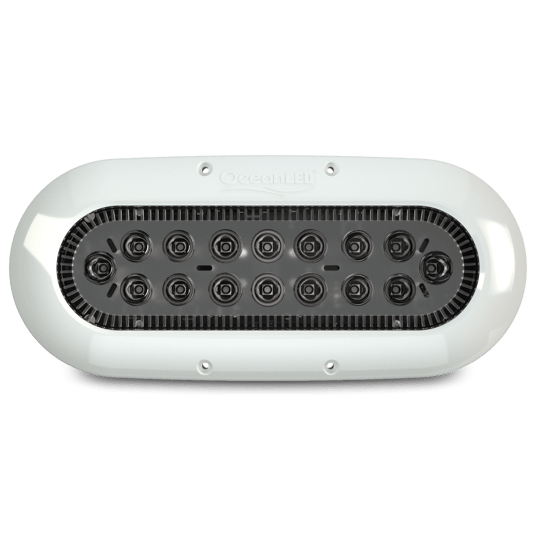

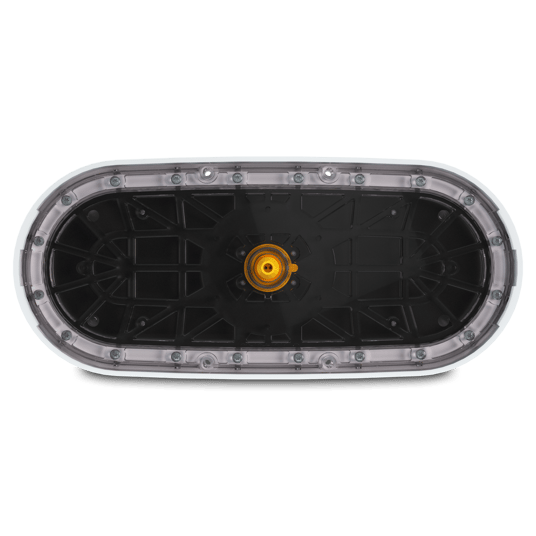

X-Series X16
The outstanding performance of the X16, with its 4,500 fixture lumen output and specially engineered underwater optics, is matched only by its reliability and build quality. Surface-mounted and requiring only a 12.5mm hole for installation, the X16 is ideally suited to leisure and sport fishing vessels of any size. Available in three different finishes, black, white and stainless steel, customizing the look of your underwater lights has never been easier.







SKU | Description |
---|---|
012308W | X16 Ultra White |
012309B | X16 Midnight Blue |
012311C | X16 Colours |
Product Highlights
Technical Details & Documents
-
Fixture Lumens Up to 4500 IP Rating IP69k Certified Minimum-Maximum operating voltage DC 9-32V DC Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum) 12V DC 3.2A / 24V DC 1.5A -
Total Weight 860g (1.90lbs) Cable Length 3m Hole cut-out for cable entry 0.5” (12.5mm) Material Grilamid -
Boat Size up to 30ft (9m) Transom / Hull Spacing 2-3ft (0.5-1m) Transom Quantity 2-6 Installation Depth (to top of fixture) 4-8” (10-20cm) -
OceanBridge Multizone Lighting Controller 013201 OceanConnect Junction Box 013204 4 Way Power Junction Box (DC) 019901 X-Series Isolating Mounting Kit 019913 X-Series X16 Stainless Steel Bezel 011418 X-Series X16 Plastic Bezel Black
%20-%20860%20x%20650%201.jpg)

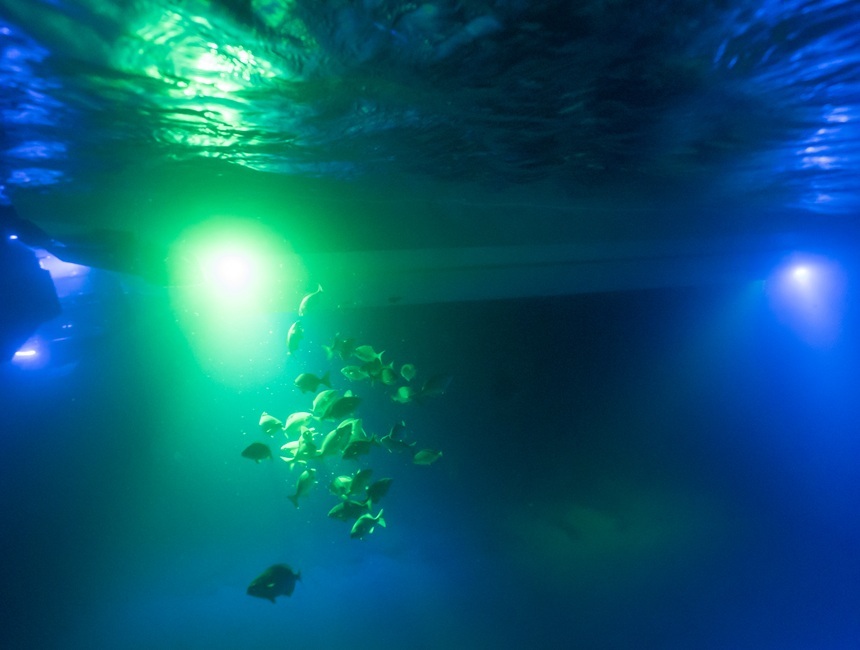

Outstanding Performance, Unrivalled Lighting Effects
Embodying the phrase “bang for your buck”, the X16 delivers up to 4,500 lumens and incredible visual effects, whilst only drawing a maximum of 3.2 amps at 12v. Thanks to its signature OceanLED underwater optics, the X16 can match underwater lights with far higher headline lumen figures.

Total Peace of Mind, IP69K Certification
A single piece Grilamid front face makes water intrusion almost impossible, the X-Series X16 is one of the toughest underwater lights available anywhere. Tested to IP69k, the X16 has proven itself capable of standing up to the most brutal testing available for an underwater light.

Designed With You in Mind
The advanced Grilamid construction material of the X16 negates the risk of corrosion over long periods of time in the water. The use of specialised materials means installation on any hull material easy, GRP, wood or even metal, the X16 is your ideal solution.

Suitable For Use Above Water
Suitable for use almost anywhere, including deck areas where a flood light is needed. The intelligent thermal control of the X16 means the light will never overheat, even in extreme temperatures. Covered by our No Hassle Warranty, your complete peace of mind is assured.

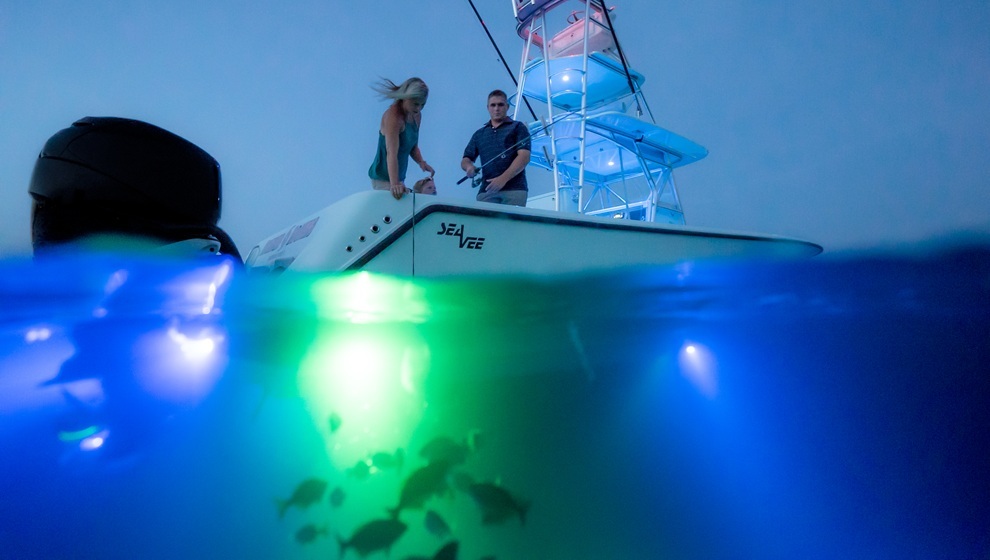

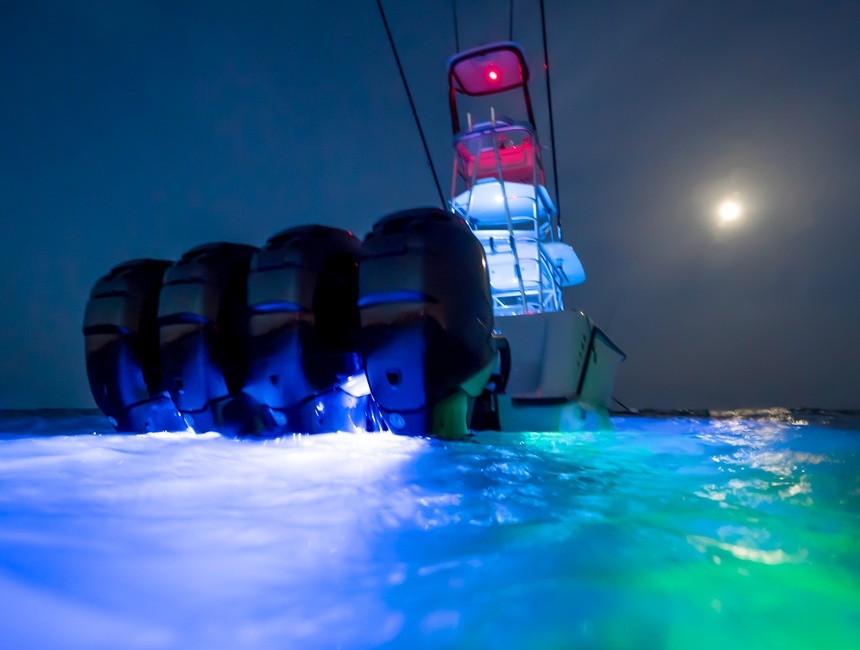

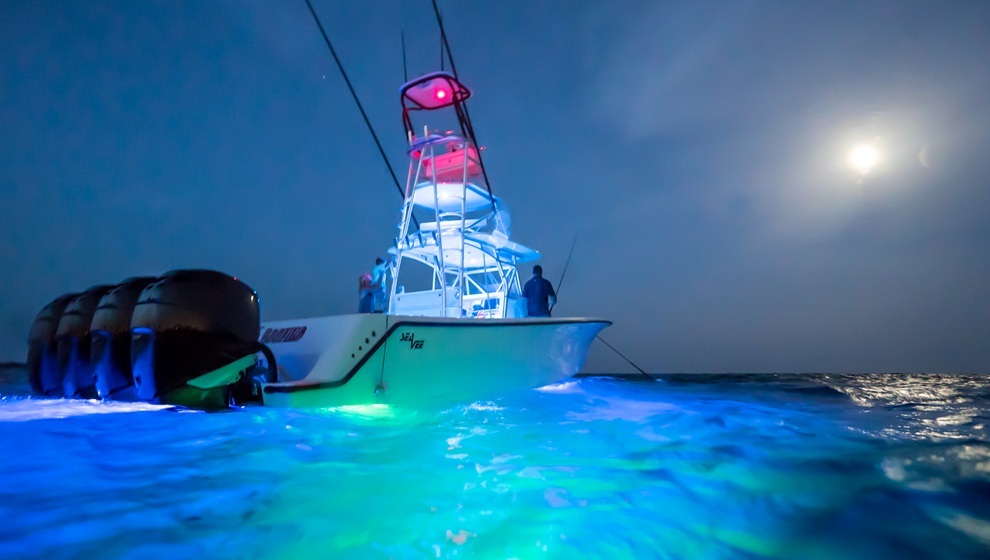

Gallery
%20-%20990%20x%20560%201.jpg)
