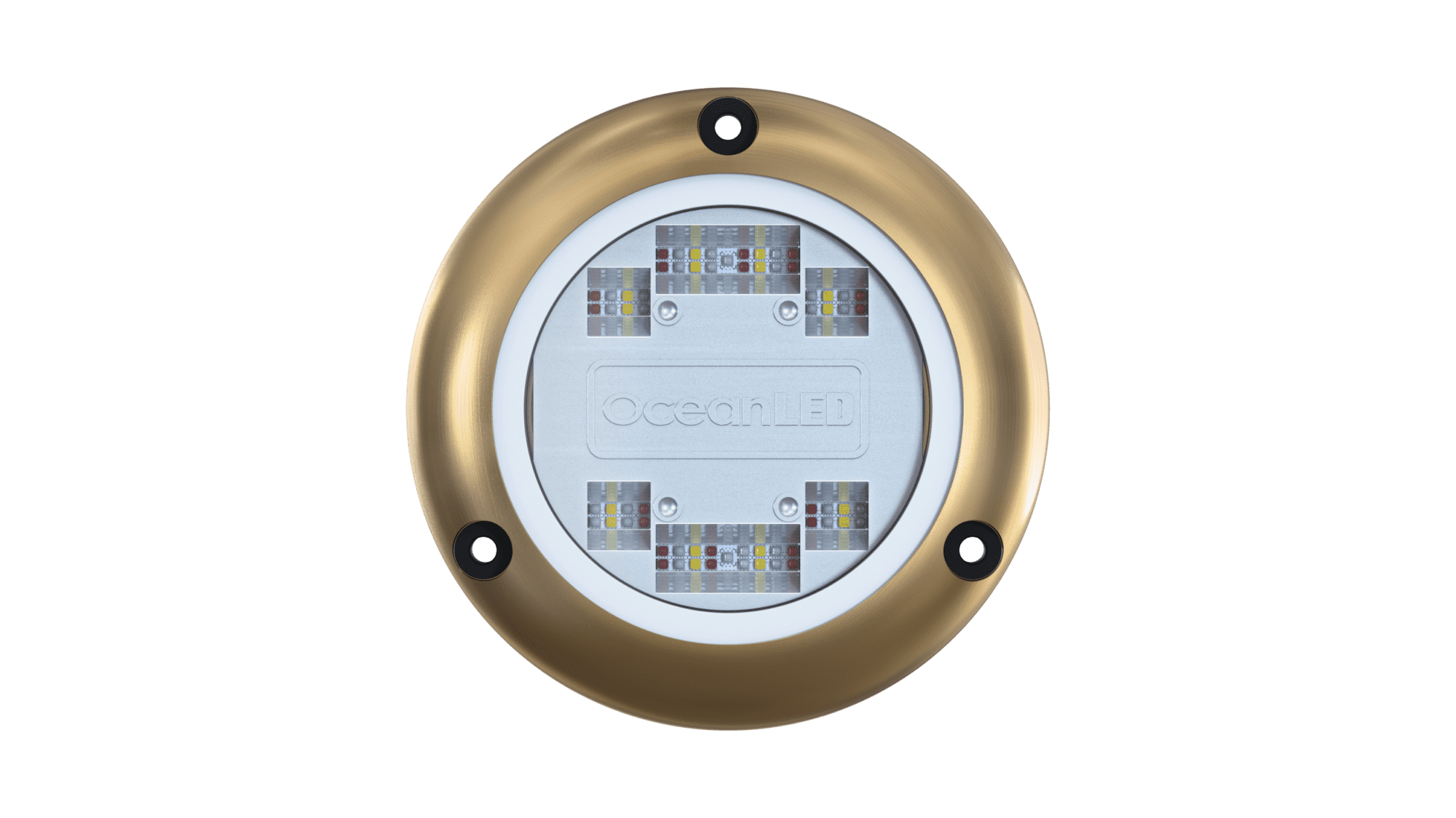

Sport Colours DMX


The Sport Colours DMX takes underwater lighting to breathtaking new heights. This ultra-reliable surface-mounted, full-color underwater light, is capable of producing up to 3,500 fixture lumens. Constructed using the finest marine-grade aluminum bronze, and certified to IP69K for water ingress protection, the Sport Colors DMX is the perfect choice for sport fishing vessels, leisure craft, and wake sports boats. Benefiting from our signature optics, creating a blade of light that cuts through the water in a way no other underwater lighting brand can match, the Sport Colours DMX leads it’s class. Dramatically reducing light loss and creating unrivaled lighting effects.


Ideal for installation on all types of boat, the Sport Colours DMX can be used for everything from sport fishing and day boats, to pontoon boats, wake boats and even houseboats. Even boats left in the water for extended periods of time can benefit from Sport DMX lights. The state-of-the-art Tritonium coating protects our lights from underwater growth, allowing the owner or captain to simply wipe over the surface of the light, saving hours of scrubbing.


The Sport Colours DMX light benefits from our signature underwater optics. Our unique optics have been specifically designed by our in-house team of expert engineers to supercharge a light’s performance. With advanced light angling techniques, our optics focus the light to create a blade of light, that cuts through the water in a way no other underwater brand can match. The result is a light that uses far less power than its counterparts, whilst creating a superior effect.



The Sport Colours DMX light has been rigorously tested to IP69K, the highest protection standard available, to ensure your complete peace of mind. The forged marine-grade aluminum bronze housing and specialist toughed colourless glass, provide an extremely tough outer surface. The addition of advanced seals mean the Sport Colours DMX is one of the most robust and long-lasting underwater lights available anywhere.


Exceptionally bright and randomised strobing of the light is proven to attract more fish and catch more bait.


The powerful, digitally enhanced internal microcontroller ensures high-speed efficiency and fast transient response. Built-in active thermal control (ATC) means you never have to worry about overheating. The light will automatically manage its own output and throttle-back as needed, to protect the LEDs.


Thanks to its surface-mounted installation, the Sport Colours DMX is quick and easy to install. Just a single 12.5mm (0.5”) hole is required for installation, perfect for those looking to install their lights themselves.

Sport Colours DMX


  • Up To 3,500 Fixture Lumens Up To 3,500 Fixture Lumens
  • Advanced Optics Advanced Optics
  • Full RGBW Multi-Colour Full RGBW Multi-Colour
  • IP69k Certified IP69k Certified
  • 20˚focused side beam providing greater water penetration. 20˚focused side beam providing greater water penetration.
  • 90˚ wide beam angle with no fading at the edge gives better illumination. 90˚ wide beam angle with no fading at the edge gives better illumination.
  • Compact and simple design Compact and simple design
  • Simple to install Simple to install
  • Ultra Reliable Ultra Reliable
  • Active Thermal Control Active Thermal Control
  • Fish-Strobe Mode Fish-Strobe Mode
  • Easy to clean

Colours Available

  • Multi-Colour

SKU / Description

SKU Description
012117CD Sport Colours DMX


Fixture Lumens Up to 3,500
IP Rating IP69k Certified
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Current / Amp draw (DC) 12V DC 5.5A / 24V DC 2.4A
Driver type Internal, Reverse Polarity Protected

Mounting Recommendations

Boat size Up to 65’ (20m)
Transom / Hull spacing 2-4’ (0.5-1.2m)
Transom quantity 2-6
Installation depth (To top of fixture) 8-10” (20-25cm)


Total weight 700g
Extension cable length (standard) 78.7' (2m)
Hole cut-out for cable entry 0.5” (12.5mm)
Material AB2 Aluminium Bronze


2-Way DMX Junction Box 013205
