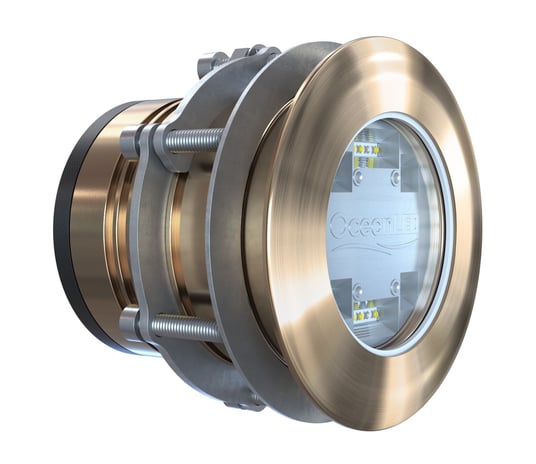

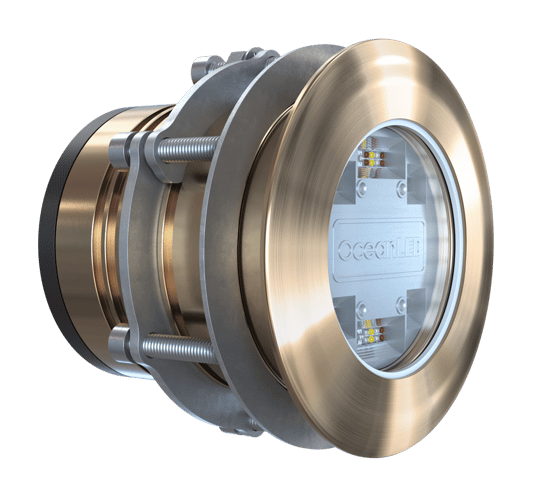

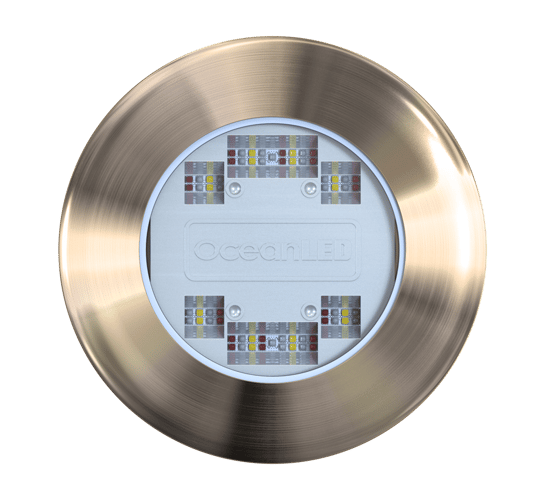

Explore E3

The Explore E3 benefits from our most advanced underwater optics, specifically designed by our in-house team of expert engineers to supercharge light performance. With advanced light focusing technology and upto 5,000 fixture lumens, the E3 creates a coveted OceanLED light blade, cutting through water in a way no other underwater light brand can match.

Learn more

Go to store Find a dealer

Colours available:

Product features:

Dual Mechanical Seal

Up to 5,000 Fixture Lumens

Advanced Underwater Optics

Ultra Reliable

Easy Installation

C2P25158 - OceanLED - Icons28 - Cartridge Replacement

Easy Cartridge Replacement

RINA Type Approved

ABS Type Approved

Product variants:

SKU	Description
E3009W	Explore E3 XFM Ultra White
E3009B	Explore E3 XFM Midnight Blue
E3009BW	Explore E3 XFM Dual Blue/White
E3009CD	Explore E3 XFM Colours DMX

UNRIVALLED PERFORMANCE

Product Highlights

The Explore E3 has been rigorously tested to IP69K, the highest water ingress protection standard available to ensure your complete peace of mind. The forged marine-grade aluminum bronze housing, specialist toughened colourless glass and dual seals take reliability to unmatched heights. Thanks to its XFM design, light cartridges can be quickly and easily replaced without hauling the boat. Making it the ideal solution for larger vessels.

Upto 5,000 Fixture Lumens

For incredible lighting effects.

Advanced Underwater Optics

Supercharging light performance

Ultra Reliable

Double Mechanical Seal & IP69K Certified

In Water Light Service & Replacement

Making service and maintenance easy

Fixture Lumens (Single Colour)	5,000
Fixture Lumens (Dual Colour)	3,000
Fixture Lumens (Colours DMX)	3,500
IP Rating	IP69k Certified
Min-Max Operating voltage DC	9-32V DC
Current / Amp draw Single Colour (12V DC / 24V DC)	5.5A / 2.4A
Current / Amp draw Dual Colour (12V DC / 24V DC)	3.6A / 1.7A
Current / Amp draw Colour Scroll (12V DC / 24V DC)	5.5A / 2.4A
Min-Max Operating voltage AC (Optional)	100V - 240V AC
Current / Amp draw Single Colour (110V AC / 230V AC)	620mA / 290mA
Current / Amp draw Dual Colour (110V AC / 230V AC)	430mA / 210mA
Current / Amp draw Colour Scroll (110V AC / 230V AC)	620mA / 290mA

Total weight	1.2kg (2.65lbs)
Total Diameter (Including Flange)	105mm (4.13”)
Diameter Of Body	80mm (3.15”)
Profile Of Fixture	4mm (0.16”)
Length	97mm (3..8”)
Clearance Required Behind the Light	100mm (3.93”)
Hole Cut-Out	83mm (3.25”)
Material	AB2 Aluminium Bronze

Boat size Up to 30m

Transom / Hull spacing 0.5-1.2m (2-4ft)

Installation depth below waterline 25-30cm (10-12ft)

4-Way DC Power Junction Box	019901
Explore AC Power Kit	019904
Mounting Tube Extension Kit	019905
Explore XFM Rear Enclosure Kit	019911
DMX Terminator	011044
OceanBridge Controller	013201

Advanced Underwater Optics

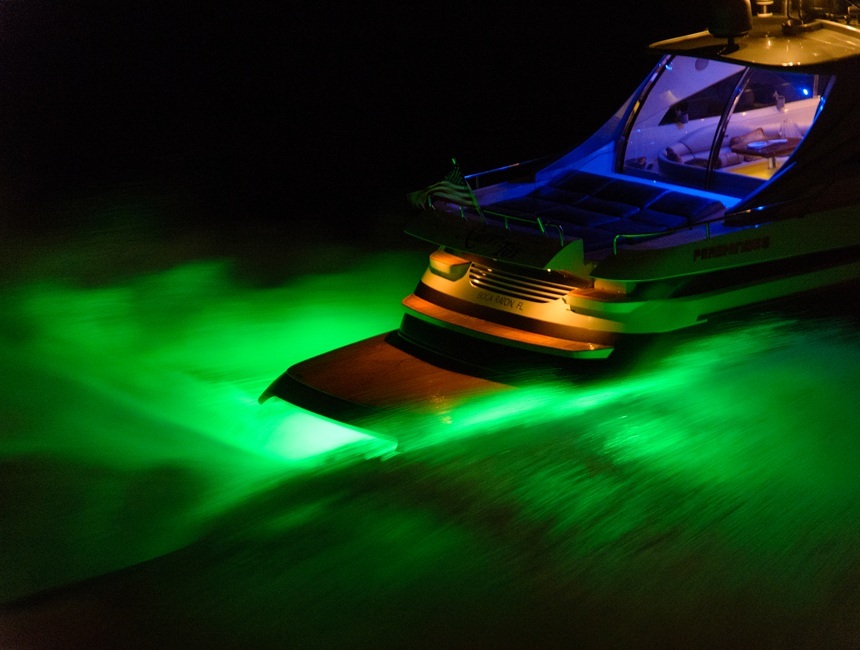

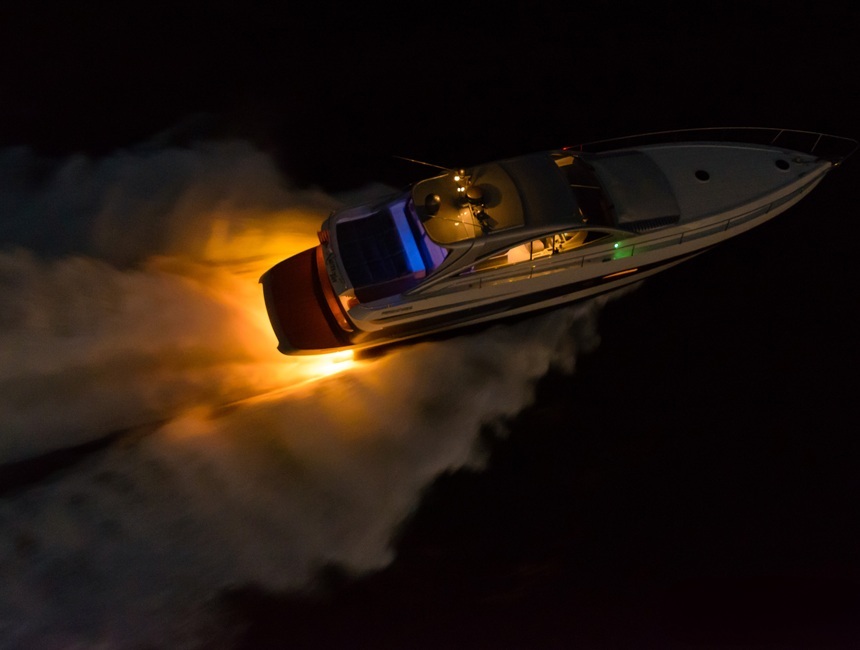

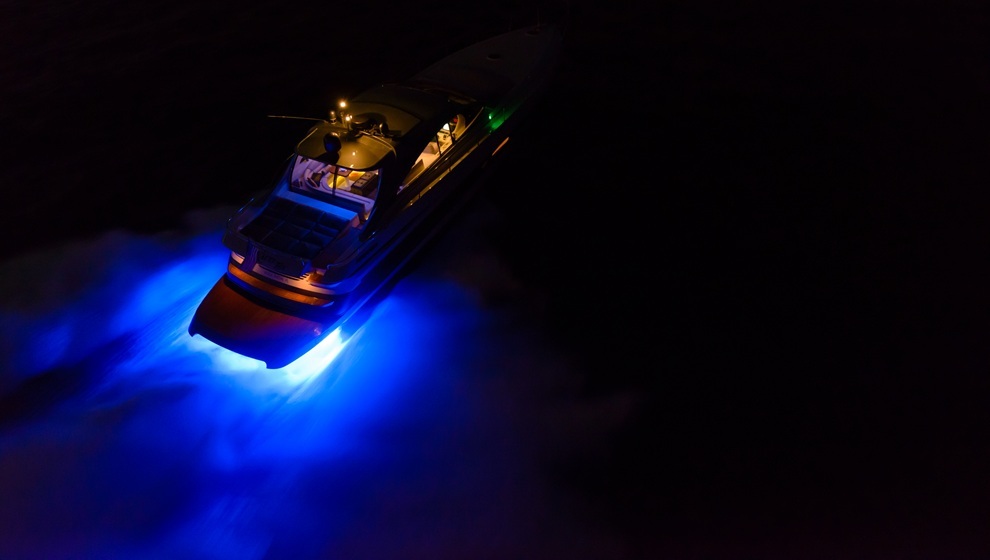

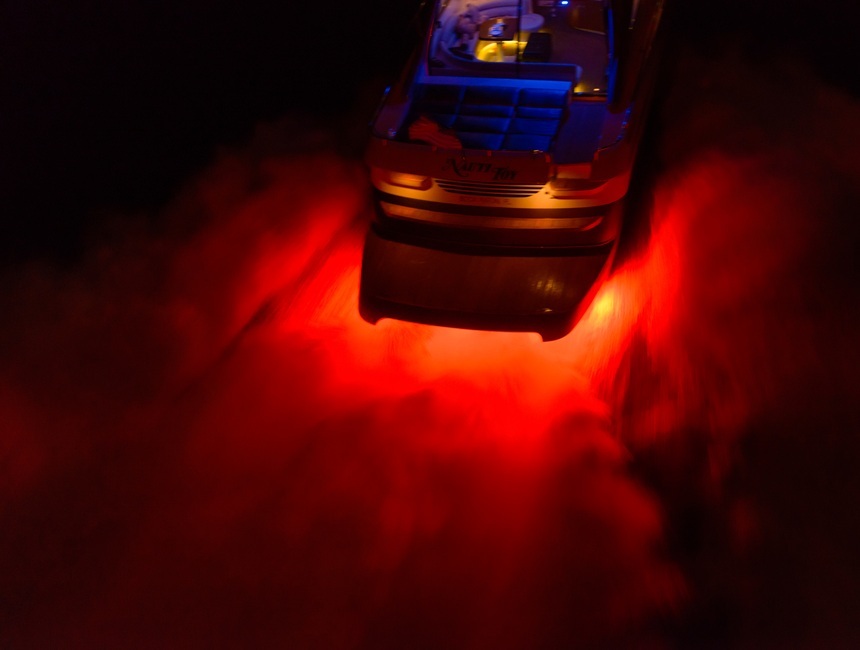

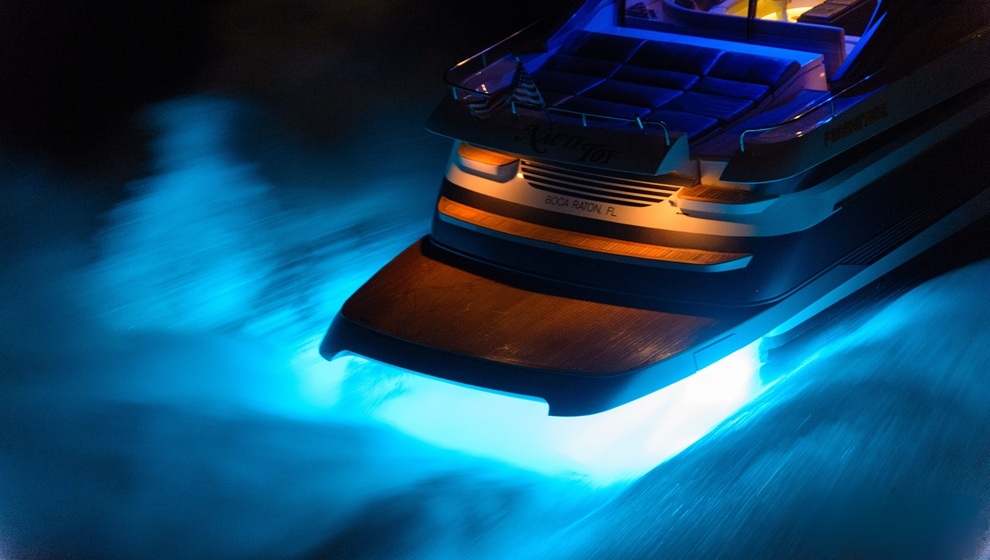

The Explore E3 benefits from our most advanced underwater optics. Carefully designed by our expert engineers and designers to supercharge underwater light performance. Our optics focus the light to create a blade, that cuts through the water in a way no other underwater brand can match. The result is a huge performance boost, and a light which will outperform other products with twice the headline fixture lumen figure.

Superior Protection. Total Peace of Mind

Easy Servicing & Light Replacement

The flush mount XFM design, allows the light cartridges to be quickly and easily replaced, whilst the boat is still in the water. So, you never have to worry about expensive haulout costs just to service your underwater lights. The addition of advanced dual seals means that in the unlikely situation a seal was to fail, there is a second seal in place prevent any water ingress.

Intelligent Lighting

The powerful, digitally enhanced internal microcontroller ensures high-speed efficiency and fast transient response. Built-in active thermal control means you never have to worry about overheating. The Explore E3 underwater light will automatically manage its own output and throttle-back if needed, to protect the LEDs.
