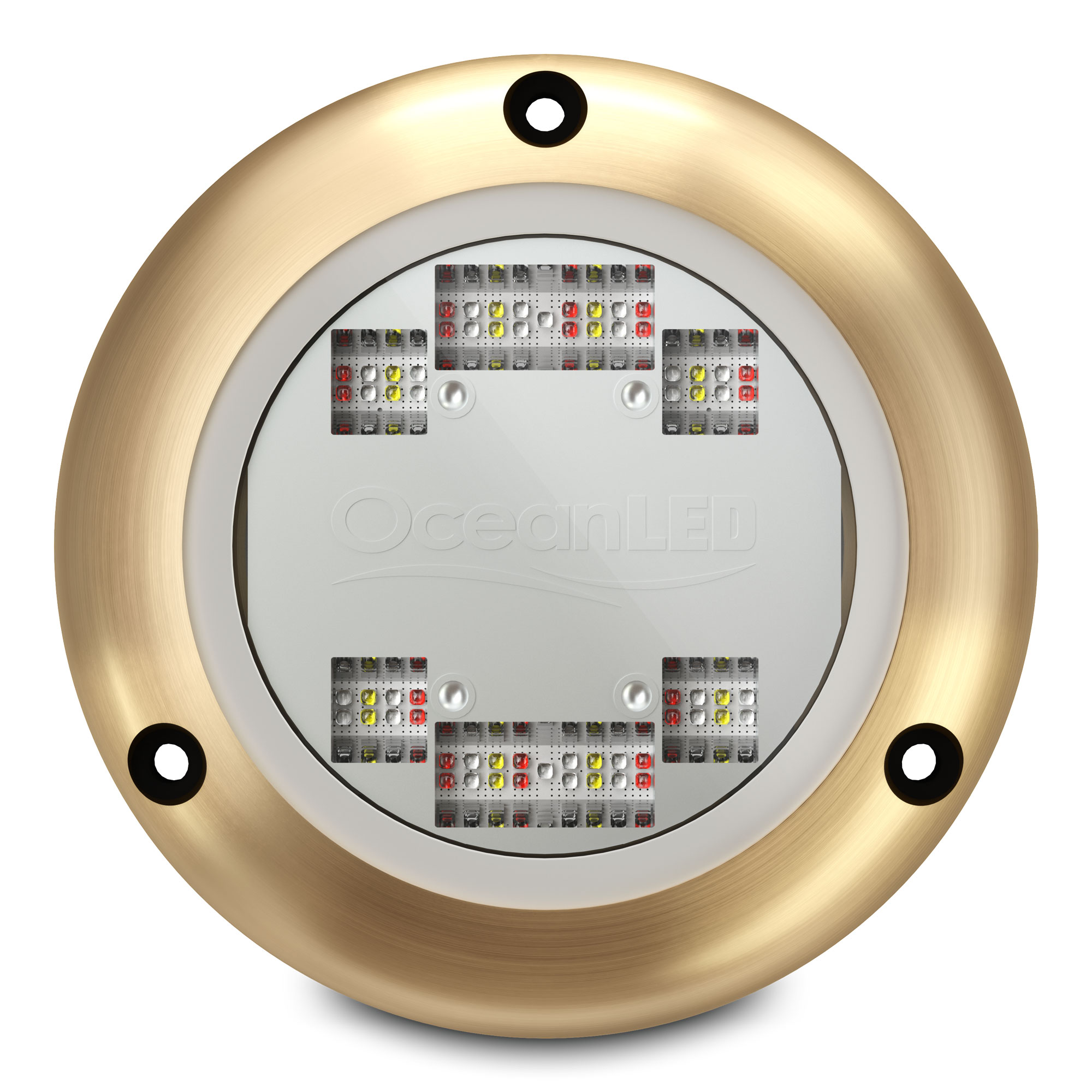

Sport S3166s


The OceanLED Sport series S3166s Underwater LED light is the perfect choice for fishing and cruising in small to medium sized boats.

Full RGBW Multi-Colour

Whether fishing or enjoying time on the water with friends of family, you can choose the perfect colour.

Advanced Optics

  • Narrower focused side beam angle providing greater water penetration.
  • True 90˚ beam angle with no fading at the edge gives better illumination.
Advanced Optics

IP69k Protection

As part of our continuous strive for delivering the highest quality products to our customers, the Sport Series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.


Exceptionally bright and randomised strobing of the light is proven to attract more fish and catch more bait.


90˚/20˚ Beam Angle - A true wide-angled, focused beam lights up a large area of the water.


Simple to install with a 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Sport S3166s


  • Up To 3,500 Fixture Lumens Up To 3,500 Fixture Lumens
  • 90° Top Beam 90° Top Beam
  • Rectangular Beam Rectangular Beam
  • 20° Side Beam 20° Side Beam
  • Full RGBW Multi-Colour
  • IP69k Certified
  • Compact and simple design
  • Narrower focused side beam angle providing greater water penetration.
  • True 90˚ beam angle with no fading at the edge gives better illumination.
  • Simple to install
  • Easy to clean
  • Fish-Strobe Mode
  • Active Thermal Control

Colours Available

  • Colours

SKU / Description

SKU Description
012110C Sport S3166s Multi Colour


Fixture Lumens Up to 3500
IP Rating IP69k Certified
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Current / Amp draw (DC) 12V DC 5.5A / 24V DC 2.4A
Driver type Internal, Reverse Polarity Protected

Mounting Recommendations

Boat size Up to 65’ (20m)
Transom / Hull spacing 2-4’ (0.5-1.2m)
Transom quantity 2-6
Installation depth (To top of fixture) 8-10” (20-25cm)


Total weight 700g
Extension cable length (standard) 9.84’ (3m)
Hole cut-out for cable entry 0.5” (12.5mm)
Material AB2 Aluminium Bronze


4 Way V DC Power Junction Box 019901
