SPORT S3116s

Overview

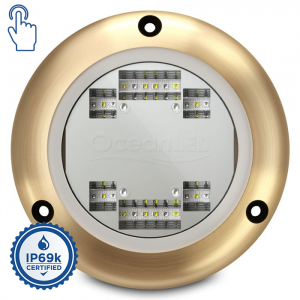

OceanLED Sport Series S3116s is the perfect underwater LED light for fishing and cruising in small and medium sized boats.

Attract More

Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

Advanced Optics

Advanced Optics

  • Illuminates a significantly larger area than its competitors
  • Narrower focused side beam angle providing greater water penetration
  • True 90˚ beam angle with no fading at the edge gives better illumination

IP69k Protection

As part of our continuous strive for delivering the highest quality products to our customers, the Sport Series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.

benefit-fish

Exceptionally bright and randomised strobing of the light is proven to attract more fish and catch more bait.

optics

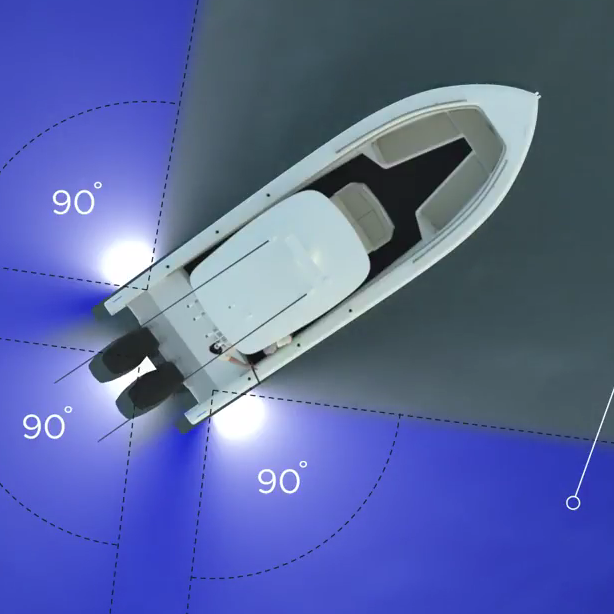

90˚/20˚ Beam Angle - A true wide-angled, focused beam lights up a large area of the water.

benefit-wrench

Simple to install with a 12mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

SPORT S3116s

Features

  • 90° Top Beam 90° Top Beam
  • Up to 5000 Fixture Lumens Up to 5000 Fixture Lumens
  • 20° Side Beam 20° Side Beam
  • Rectangular Beam Rectangular Beam
  • True 90˚ beam angle with no fading at the edge gives better illumination.
  • Narrower focused side beam angle providing greater water penetration.
  • Illuminates a significantly larger area than its competitors
  • IP69k Certified
  • Compact and simple design
  • Simple to install
  • Easy to clean
  • Fish-Strobe Mode

Colours Available

  • Midnight Blue
  • Ultra White

SKU / Description

SKU Description
012102W Single Colour Ultra White
012101B Single Colour Midnight Blue

Technical

Fixture Lumens Up to 5000
IP Rating IP69k Certified
Minimum-Maximum operating voltage DC 9-32V DC
Current / Amp draw (DC) 12V DC 5.5A / 24V DC 2.4A
Driver type Internal

Mounting Recommendations

Boat size up to 65’ (20m)
Transom / Hull spacing 2-4’ (0.5-1.2m)
Transom quantity 2-6
Installation depth (to top of fixture) 8-10” (20-25cm)

Physical

Total weight 0.70kg
Extension cable length (standard) 9.84’ (3m)
Hole cut-out for cable entry 1/2” (12.5mm)
Material AB2 Aluminium Bronze

Accessories

NEW 4 Way V DC Power Junction Box 019901
