Explore XFM E6

Overview

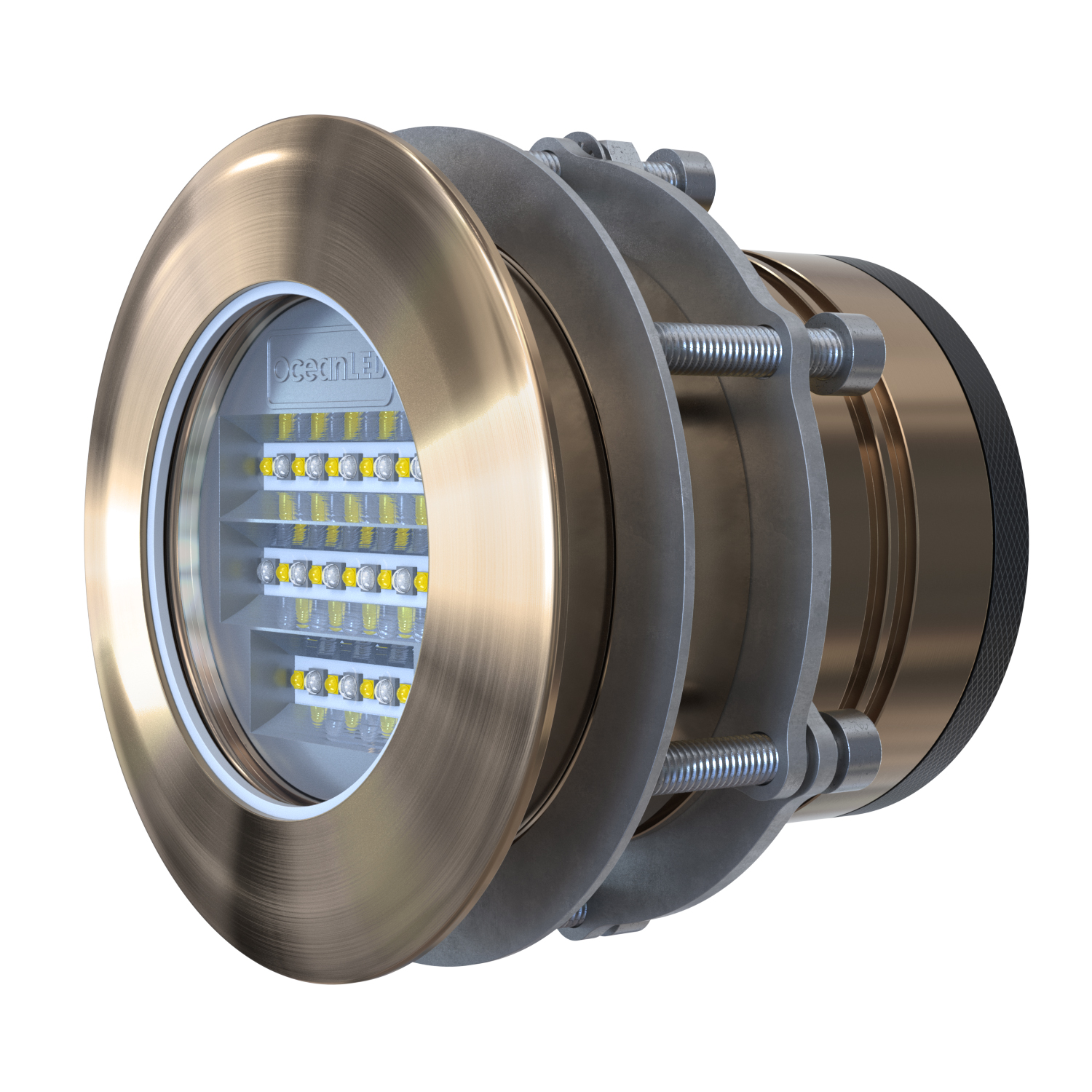

OceanLED Explore XFM E6 is the ultimate choice, flush mount underwater LED light for those who want to be seen.

Available in Single, Dual, or full RGBW Colours DMX, the Explore E6 packs an incredible 11,000* fixture lumens into a low profile, Xchangeable Flush Mount body.

Overview
Advanced Optics

Advanced Optics

  • New generation innovative, efficient reflector optic.
  • 20˚ side beam produces a blade of light under the water that penetrates further.
  • A true 90° wide-angled, focused top beam lights up a large area of water, flooding it with light.

Technologically Advanced and Super Efficient

The mix of optics /electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.

Technologically Advanced and Super Efficient
Reduced Installation Time

Reduced Installation Time

All aspects of the design including the clamping kit make installation quicker and simpler.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.



IP69k Protection

As part of our continuous strive for delivering the highest quality products to our customers, the Explore XFM series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.

Choice of Control

The OceanLED Explore E6 has a variety of ways you can control the lights, choose from the options below:

Switch / Push button:   Consult the installation manual for more information

Remote Control:   OceanDMX RC Controller kit

DMX Control Panel:  OceanDMX TP     /    OceanDMX WTP Plus



Choice of Control

Superior Protection

The Explore Series Rear Enclosure Kit fits neatly to the rear of the Explore XFM E3, E6 or E7 and provides protection from temporary submersion inside the hull. As well as a great choice for new installations, it can also be easily retrofitted to any existing Explore XFM installation.

The Explore XFM Rear Enclosure gives customers total peace of mind when choosing the best possible solution for their yacht.

Superior Protection. Total Peace of Mind.

benefit beam

A true wide-angled, focused beam lights up a large area of water, flooding it with light.

benefit-wrench

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

benefit-fish

Exceptionally bright, randomised strobing of the light is proven to attract more bait and catch more fish.

Explore XFM E6

Features

  • 90° Top Beam 90° Top Beam
  • Up to 11,000 Fixture Lumens* Up to 11,000 Fixture Lumens*
  • 20° Side Beam 20° Side Beam
  • Rectangular Beam Rectangular Beam
  • Advanced, new generation optics.
  • Compact design and built in driver.
  • Reduced installation time.
  • Simple toggle control.
  • Fish strobe mode.
  • Ultra low profile outer bezel.
  • Control by switch or by DMX.
  • IP68 + IP69k Certified
  • Optional Rear Enclosure Kit

Colours Available

  • Midnight Blue
  • Midnight Blue / Ultra White
  • Multi-Colour
  • Ultra White

SKU / Description

SKU Description
E6009B Midnight Blue Explore XFM E6
E6009W Ultra White Explore XFM E6
E6009BW Dual White/Blue Explore XFM E6
E6009CD Colours DMX Explore XFM E6

Technical

Fixture Lumens (Dual Colour) 11,000*
Fixture Lumens (Colours DMX) 6,000*
IP Rating IP69k Certified
Min-Max Operating voltage DC 10-32V DC
Dual Colour Current / Amp draw (12V DC / 24V DC) 7.8A / 4.7A
Colours DMX Current / Amp draw (12V DC / 24V DC) 6.8A / 3.2A
Min-Max Operating voltage AC 100V - 240V AC
Dual Colour Current / Amp draw (110V AC / 230V AC) 1,190mA / 570mA
Colours DMX Current / Amp draw (110V AC / 230V AC) 830mA / 400mA
Driver type Internal
* Fixture Lumens rating is a measurement of total white light output from a complete (as sold) light fixture using laboratory standard, calibrated photometric measuring equipment.

Mounting Recommendations

Boat size 20m +
Transom / Hull spacing 0.5 - 1.2m (2-4’)
Installation depth below waterline 25 - 30cm (10-12”)

Physical

Total weight 1.25kg (2.76lbs)
Total Diameter (Including Flange) 105mm (4.13”)
Diameter Of Body 80mm (3.15”)
Profile Of Fixture 4mm (0.16”)
Length 97mm (3..8”)
Minimum Space Required Inside The Hull 170mm (6.55”)
Hole Cut-Out 83mm (3.25”)
Material (Mounting Tube) AB2 Aluminium Bronze
Material (Light Body) Aluminium

Accessories

Explore DC Power Kit 019903
Explore AC Power Kit 019904
DMX Touch Controller Kit (Colours DMX) 013001
DMX Touch Controller Kit (Dual Colour) 013003
DMX WiFi Controller Kit (Colours DMX) 013002
DMX WiFi Controller Kit (Dual Colour) 013004
OceanDMX Controller Kit (Colours DMX Only) 011712
Control Cable and Terminator Kit 012923
Explore E6 Control Link Cable (3m) 012924
Explore E6 Control Link Cable (5m) 012925
Explore E6 Control Link Cable (10m) 012926
Explore E6 Control Link Cable (15m) 012927
Explore E6 Control Link Cable (20m) 012928
Delrin Sleeve 001-500638
Mounting Tube Extension Kit 019905
Extension Tube Removal Kit 019907
Explore XFM Rear Enclosure Kit 019911
