The E2 is our latest addition to the Explore range, giving customers a compact smaller XFM light for tight installation spaces, but with all the build quality and premium features of the larger lights in the range.

Choice of Beam

Choice of Beam

With the E2, you can choose either the signature Explore Series wide angle beam
(90° x 20° Elliptical), or a new narrow “laser” beam shape (20° Circular), depending on your desired effect.

Advanced Water Ingress Protection

The new Explore E2 benefits from full IP69k Certification, the highest possible rating. Also, the rear of the light is protected from in-hull temporary submersion for boats where rough seas and waves sometimes flood the stern.

Advanced Water Ingress Protection
XFM Removal

XFM Removal

The Explore E2 has the same XFM capabilities as the larger lights in the range, being able to remove the light body for maintenance or upgrades, without the need to haul the boat.

Control your Explore E2 lights

Control your Explore E2 lights via the 3rd party switch or push button of your choice.

Consult the installation manual for more information

Control your Explore E2 lights

90° x 20° Wide Beam Option


20° Narrow Beam Option


Superior Water Ingress Protection

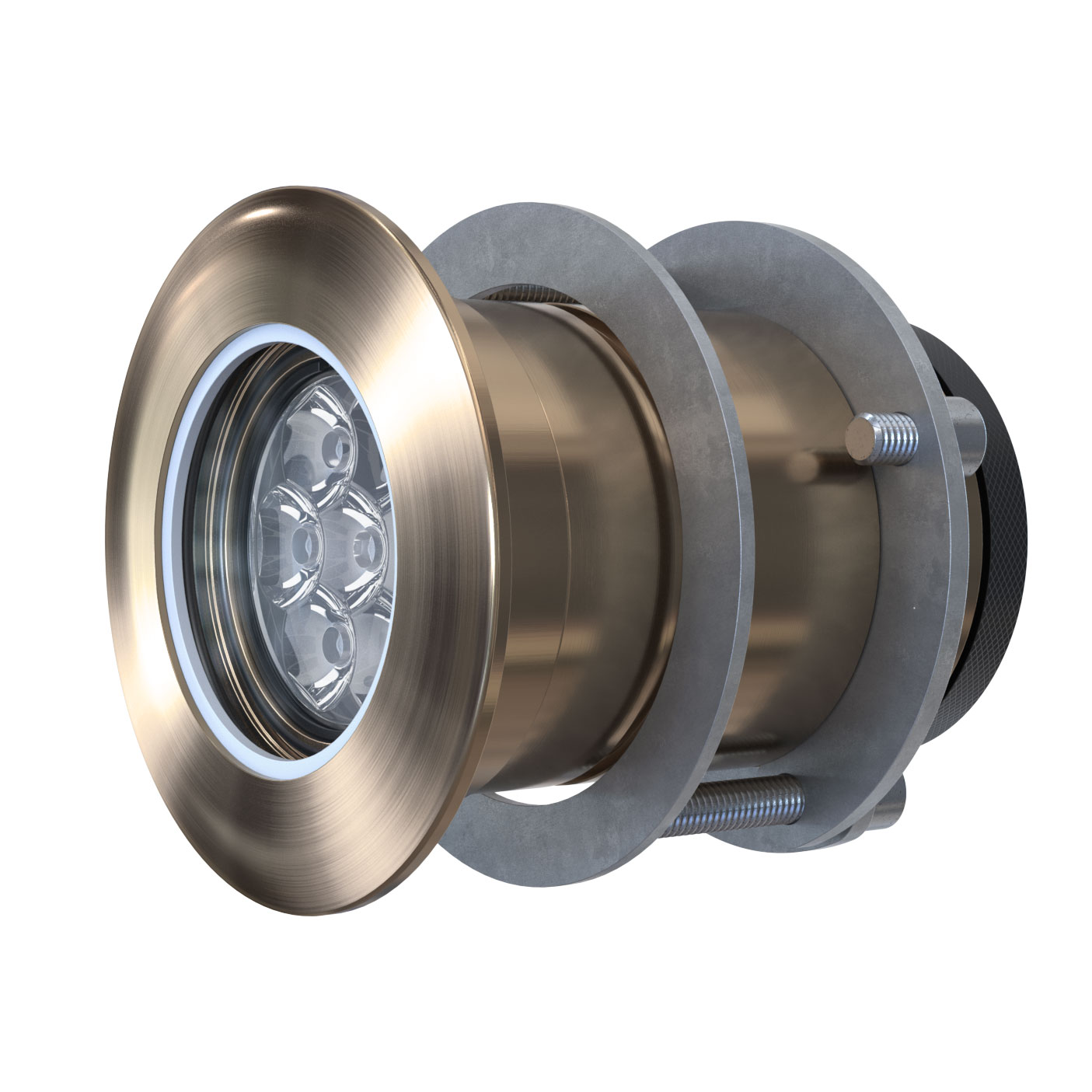

Explore E2


  • Elliptical 90° / 20° Wide Beam Option Elliptical 90° / 20° Wide Beam Option
  • Circular 20° Beam Option Circular 20° Beam Option
  • Up to 3000 Fixture Lumens
  • Compact design and built in driver.
  • Ultra low profile outer bezel.
  • IP69k Certification + In-hull Temporary Submersion Protection

Colours Available

  • Midnight Blue
  • Ultra White

SKU / Description

SKU Description
E2009W Explore E2 Wide Beam (Ultra White)
E2009B Explore E2 Wide Beam (Midnight Blue)
E2002W Explore E2 Narrow Beam (Ultra White)
E2002B Explore E2 Narrow Beam (Midnight Blue)


Fixture Lumens* (total light output from a finished fixture) 3000
Beam angle (Wide) 90° / 20 ° Elliptical
Beam angle (Narrow) 20° Circular
IP Rating IP69k
Minimum-Maximum operating voltage DC 10-30V DC
Current / Amp draw (DC) 3.5A@12V DC / 1.5A@24V DC
Driver type Internal
Correlated Color Temp. 6500k (White)
Rear Temporary Submersion Protection Yes
Fish Strobe Yes
Anti-fouling properties Tritonium coated lens
LED Manufacturer CREE

Mounting Recommendations

Boat size Up to 20m (65’)
Transom / Hull spacing 1 - 1.5m (3-5’)
Installation depth below waterline 25-30cm (10-12”)
Maximum Hull Thickness 60mm (2.4”)


Total weight 0.8kg (1.76lbs)
Total Diameter (Including Bezel) 80mm (3.15”)
Diameter Of Body 59mm (2.32”)
Profile Of Fixture 3.5mm (0.14”)
Overall Length 101.5mm (4”)
Minimum Space Required Inside The Hull 172mm (6.78”)
Hole Cut-Out 60mm (2.37”)
Material (Mounting Tube / Bezel) AB2 Aluminium Bronze
Material (Light Body) AB2
Lens Glass
Optics (Wide Beam Option) Hybrid Collimated
Optics (Narrow Beam Option) Collimated
CE Approved Yes


4 Way V DC Power Junction Box 019901
60mm XFM Isolation Kit 019912
