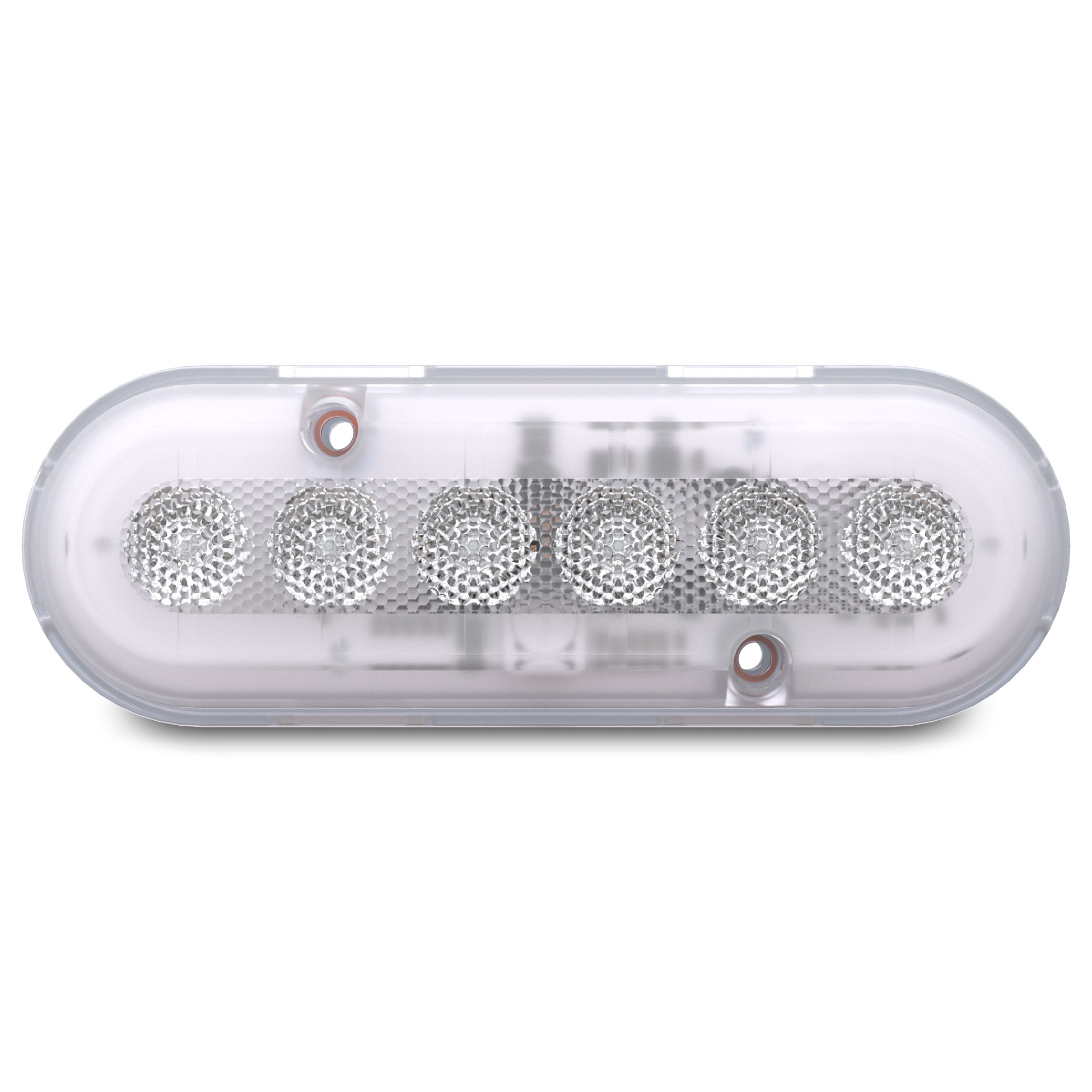

Mast Series M6 Gen2

The new M6 Gen2 Mast Series light from OceanLED is 50% brighter than its previous model with an improved design.

The narrow beam angle helps focus the powerful LEDs, enhancing the natural beauty of your vessel, making It perfect for illuminating your rigging.

Rigging

Rigging

Suitable for aluminium, steel and composite rigs on all sizes of boats ranging from sport fishing to larger yachts.

Easy to install, sturdy, weatherproof and exceptionally easy to maintain. Ultra low power draw, reverse polarity protection.

optics

The narrow beam angle helps focus the powerful LED’s, enhancing the beauty of your vessel

benefit-wrench

Suitable for aluminium, steel and composite rigs on all sizes of boats ranging from sportfishing to larger yachts.

Drill

Easy to install, sturdy, weatherproof and exceptionally easy to maintain.

M6 Gen2

Features

  • 38° Top Beam 38° Top Beam
  • Up to 660 Fixture Lumens Up to 660 Fixture Lumens
  • 38° Side Beam 38° Side Beam
  • Circular Beam Circular Beam
  • 1/2” (13mm) Hole
  • 12/24vDC
  • 40,000+ Hour Life
  • Active Thermal Control
  • Compact simple design
  • Easy to clean
  • Factory Sealed Unit
  • No Breakable Parts

Colours Available

  • Ultra White
  • Warm White

Technical

Lumens 970
Fixture Lumens 660
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32vDC
Current / Amp draw (DC) 0.45A @ 12V DC / 0.22A @ 24V DC
Driver type Internal, Reverse Polarity Protected

Mounting Recommendations

Suggested spreader spacing (for even light distribution) 0.6-2m (2-7’)

Physical

Length of fixture 6.3” (160.3mm)
Width of fixture 0.85” (21.5mm)
Profile (height) of fixture 21.8” (55.3mm)
Total weight 460g (1.01 lbs)
Extension cable length (standard) 33’ (10m)
Hole cut-out for cable entry 1/2” (12.5mm)
Material Chemically resistant optical polymer

Accessories

4 Way V DC Power Junction Box 019901
