EYES Leisure Marine Underwater Camera

With its incredible Full HD 1080p performance, HD-SDI output, and wide-angle lens, the EYES Leisure Marine Underwater Camera is one accessory every boat should be equipped with. Whether you’re scoping out bait pots, looking for fish, checking for underwater hazards or want to take a look at your props, this incredible, and highly compact camera is the perfect solution.

Learn more

Go to store Find a dealer

Product features:

High Definition

HD-SDI Output

Ultra Wide Field of View

2.1 Megapixel

Product variants:

SKU	Description

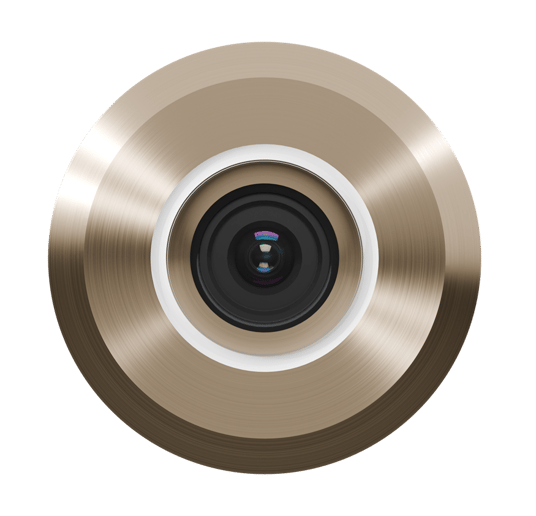

011803	EYES Leisure Marine Underwater Camera - PAL - Bronze Bezel

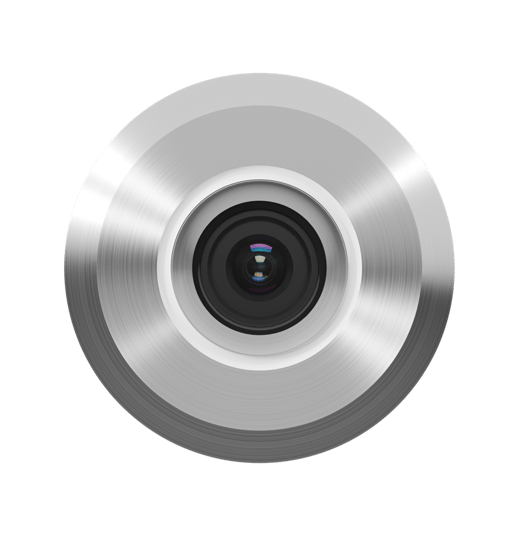

011806	EYES Leisure Marine Underwater Camera - PAL - Stainless Bezel
011810	EYES Leisure Marine Underwater Camera - NTSC - Bronze Bezel
011811	EYES Leisure Marine Underwater Camera - NTSC - Stainless Bezel

UNRIVALLED PERFORMANCE

Product Highlights

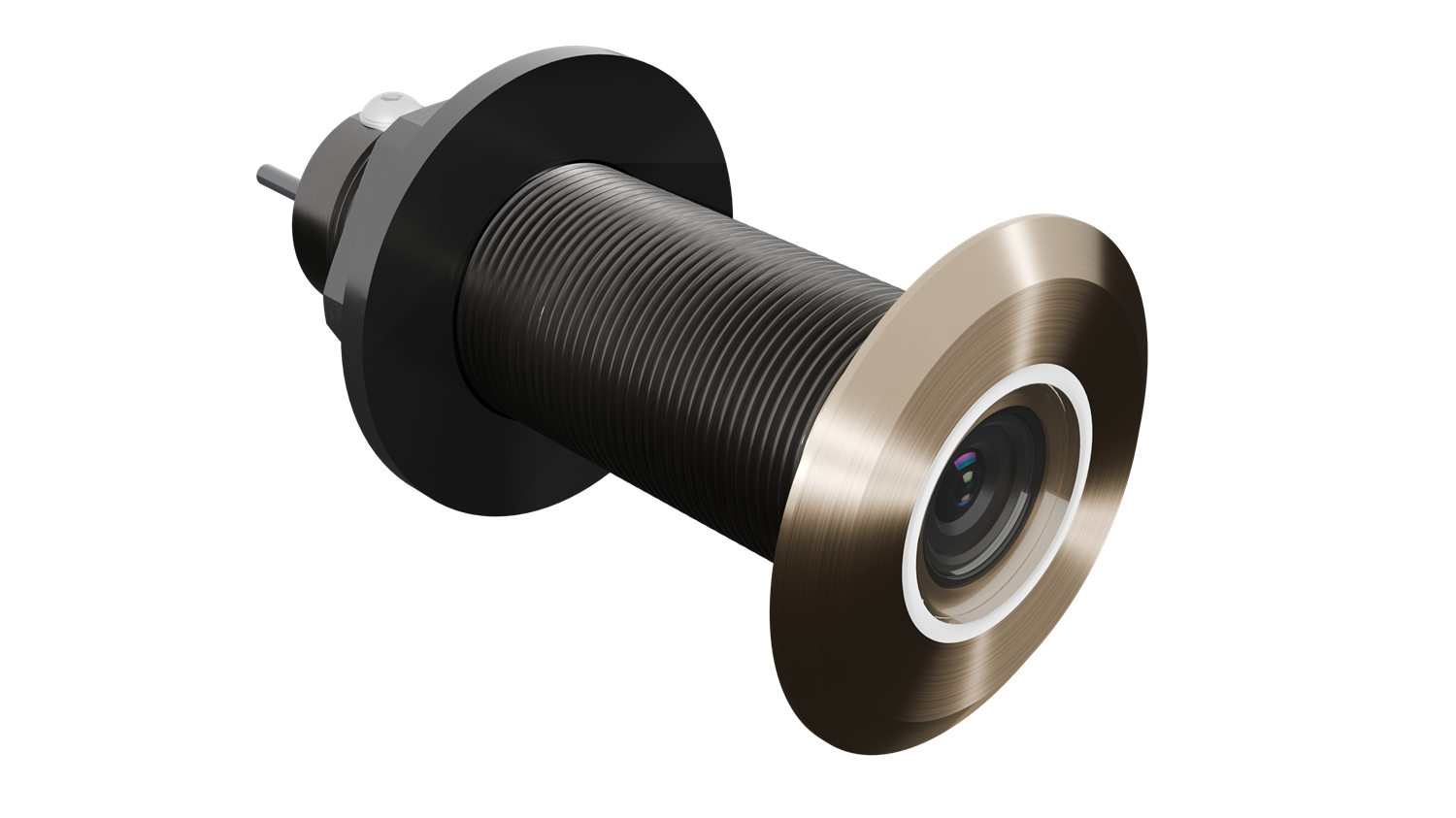

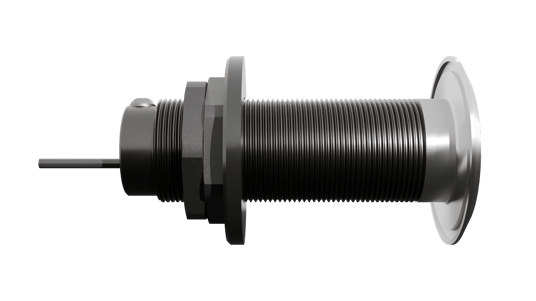

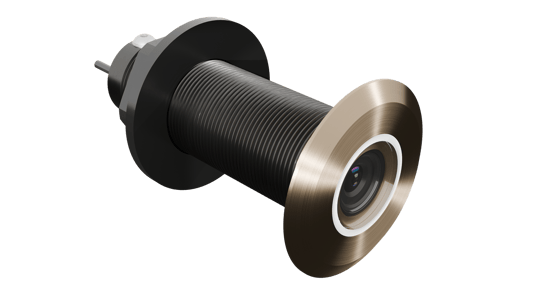

Simple and easy to install, with just a 35mm hole required for fitting. The flush-mounted design means you can install it almost anywhere on the hull, and because it’s constructed using the same aluminum bronze and stainless steel we use for our underwater lights, you know the quality is second to none.

Universal Compatibility

Plug and play with HD-SDI Output

1080p High Definition

For incredible image quality.

Ultra Wide Field of View

For incredible depth in view.

Excellent Low Light Performance

Capture every minute, even in the evening.

Minimum Illumination	0.1 LUX
Minimum-Maximum operating voltage DC	9-14V DC
Current / Amp draw (DC)	12V DC 110mA MAX
Effective Pixels	1984 (H) x 1105 (v)
Resolution	1080p
Angle of View	93.7˚(H) x 49.3˚(V)
Video Output	HD-SDI / 1.0 Vp-p Composite ( 75Ω )
Electronic Iris (Auto)	1/50, 1/60 - 1/100,000 sec
Operating Temperature	14°F~112°F (-10°C~+50°C)

Overall Length	135mm (5 5/16”)
Diameter of Bezel	58mm (2 9/32”)
Total weight	65g (2.3oz)
Cable Length	10m (30’)
Hole cut-out for body	35mm (1 3/8”)
Material	Aluminium Bronze AB2
Lens	Tritonium™ Optical Lens

Maximum hull thickness 104mm (4”)

EYES Delrin Sleeve (for metal hull installs)	001-500339
10M Extension cable for HD and NTSC	11807
20M Extension cable for HD and NTSC	11808
HDSDI to HDMI Converter	11809
EYES Camera Connector Enclosure	019908

See Everything In Vivid Detail

Incorporating a 1080p sensor with over 2 million pixels delivers unparalleled clarity and performance, even in challenging light conditions. Starting at a 94° angle-of-view the EYES Leisure Marine Camera delivers an ultra-wide perspective with no curvature or distortion. Ideal for use while fishing, looking for underwater hazards, whilst visiting your favourite islands, or simply enjoying the marine life, this HD underwater camera offers a crystal-clear picture.

EYES Lesuire Marine Camera - Mahi Mahi - 860 x 650

Durable, Flexible, Powerful

The EYES Leisure Marine Camera is suitable for almost any boat. Flush-mounted, compact, and durable, the underwater camera can be installed in almost any part of the hull. Its impressive low-light range capability makes it ideal for use in even semi-darkness, where a visual of the environment below the water line around the boat is important.

Unrivalled Quality

At OceanLED we understand quality and reliability are paramount for our customers, especially when equipment is being specified for commercial vessels. The EYES Leisure Marine Camera is built to the same rigorous standards as our superyacht underwater light range. Boasting an IP68K water intrusion certification, the robust stainless steel or aluminium bronze bezel incorporates the outer lens with advanced seals. This makes the EYES Leisure Marine Camera one of the most durable underwater-specific cameras on the market.
