Explore E7 XFM

The Explore E7 is a revolutionary underwater light, capable of creating unrivalled lighting effects with up to 50° degrees of angling adjustment. Available in single, dual and full colour options, producing up to 11,000 fixture lumens, this industry leading light dominates its class thanks to its patented angling underwater optics. These incredible optics create a powerful blade by compressing the light beam into a 90° x 20° blade that cuts through the water, in a way no other underwater light can match.

Learn more

Go to store Find a dealer

Colours available:

Product features:

Up to 11,000 Fixture Lumens

Advanced Light Angling Technology

Advanced Underwater Optics

Ultra Reliable

Easy Install

Built-In Driver

C2P25158 - OceanLED - Icons30 - Tritonium Coating

Tritonium Coated Lens

C2P25158 - OceanLED - Icons27 - Dual Mechanical Seal

Dual Mechanical Seals

RINA Type Approval

ABS Type Approval

Product variants:

SKU	Description
E7019BW	Explore E7 XFM Dual Blue / White - 10°
E7029BW	Explore E7 XFM Dual Blue / White - 20°
E7039BW	Explore E7 XFM Dual Blue / White - 30°
E7049BW	Explore E7 XFM Dual Blue / White - 40°
E7059BW	Explore E7 XFM Dual Blue / White - 50°
E7019CD	Explore E7 XFM Colours - 10°
E7029CD	Explore E7 XFM Colours - 20°
E7039CD	Explore E7 XFM Colours - 30°
E7049CD	Explore E7 XFM Colours - 40°
E7059CD	Explore E7 XFM Colours - 50°

UNRIVALLED PERFORMANCE

Product Highlights

Our most revolutionary optics allow for up to 50° of angling, a game changer for GRP and wooden hulls, ensuring that even the trickiest hulls can achieve incredible lighting effects. OceanLED is renowned for the engineering-led approach we take with our light design, which is why the E7 boasts an IP69K certification, the highest possible rating for water ingress protection. For the first time, smaller vessels have access to the same technology as superyachts.

Customizable Internal Light Angling

50° of angling compensates for tricky hull angles.

Upto 11,000 Fixture Lumens

With just a 6.8A draw (12V) & 3.2A draw (24V).

Advanced Underwater Optics

Supercharging light performance.

Easy Light Cartridge Replacement

Replace or service lights from the rear of the light.

Fixture Lumens	Up to 11,000
IP Rating	IP69k Certified
Min-Max Operating voltage DC	10-32V DC
Dual Colour Current / Amp draw (12V DC / 24V DC)	7.8A / 4.7A
Colours DMX Current / Amp draw (12V DC / 24V DC)	6.8A / 3.2A
Min-Max Operating voltage AC	100V - 240V AC
Dual Colour Current / Amp draw (110V AC / 230V AC)	1,190mA / 570mA
Colours DMX Current / Amp draw (110V AC / 230V AC)	830mA / 400mA

Total weight	1.25kg (2.76lbs)
Total Diameter (Including Flange)	105mm (4.13”)
Diameter Of Body	80mm (3.15”)
Length	97mm (3.8”)
Clearance Required Behind the Light	100mm (3.93”)
Hole Cut-Out	83mm (3.25”)
Material	AB2 Aluminium Bronze

Boat size 12m +

Transom / Hull spacing 1 - 2m (3.2-6.5’)

Installation depth below waterline 25 - 30cm (10-12”)

Explore DC Power Kit	019903
Explore AC Power Kit	019904
DMX Touch Controller Kit (Colours DMX)	013001
DMX Touch Controller Kit (Dual Colour)	013003
E6/E7 DMX Terminator	011044
Control Cable and Terminator Kit	012923
Explore E7 Control Link Cable (3m)	012924
Explore E7 Control Link Cable (5m)	012925
Explore E7 Control Link Cable (10m)	012926
Explore E7 Control Link Cable (15m)	012927
Explore E7 Control Link Cable (20m)	012928
Explore XFM Rear Enclosure Kit	019911

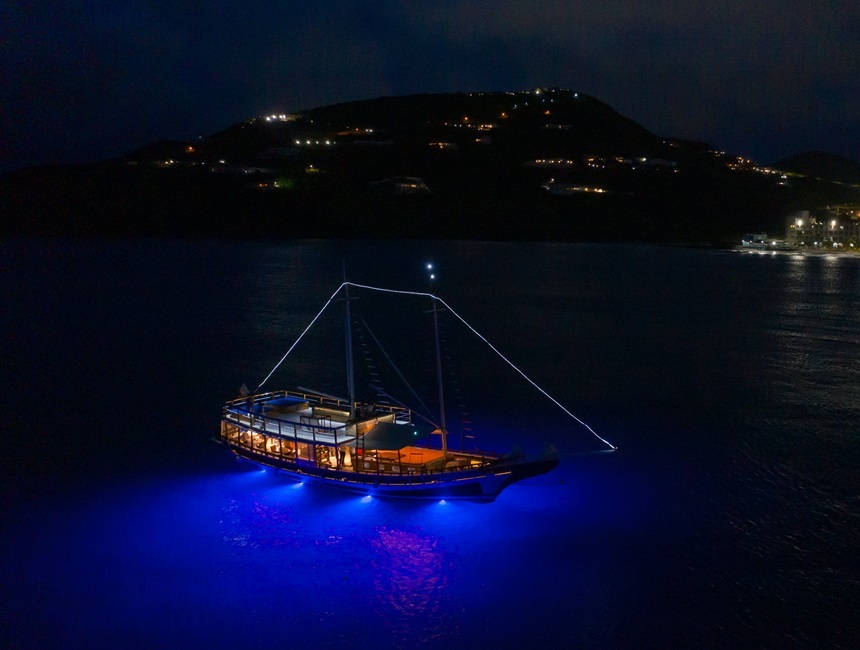

20201109_Spirit of St. Maarten Sunset Tour Photoshoot Drone-10 - 860 x 650

Advanced Light Angling Technology

The Explore E7 uses the same revolutionary underwater optics found in our superyacht range. These one of kind optics allow the light beam to be angled as much as 50°, to ensure your lights are not pointing down towards the seabed. The revolutionary technology allows vessels with even the shallowest hull angles to benefit from underwater lighting, without compromising on performance.

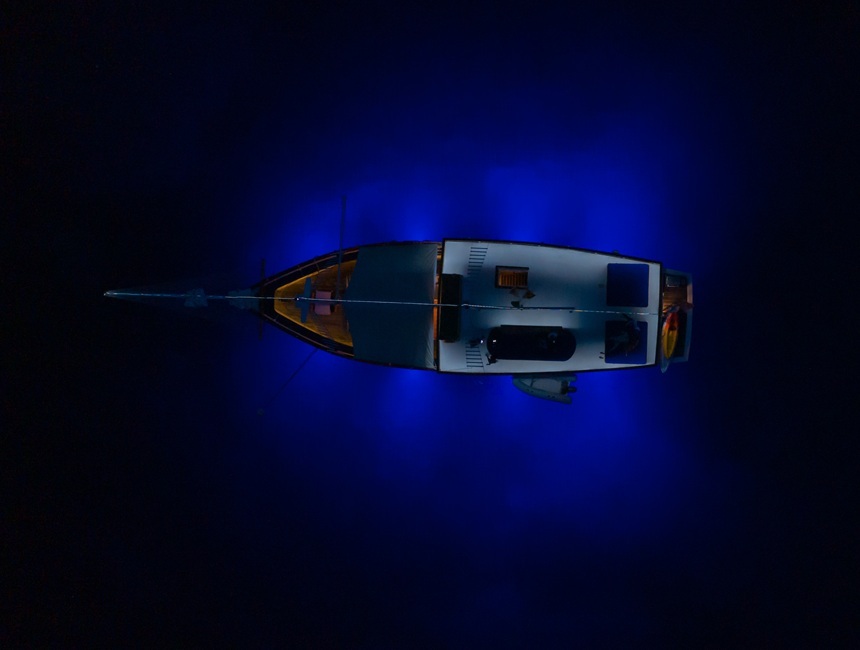

20201109_Spirit of St. Maarten Sunset Tour Photoshoot Drone-2 - 860 x 650

Incredible Lighting Effects

The Explore E7 light creates an unrivalled lighting effect. Born of the same technology used in our superyacht range, the E7 dominates the high-power underwater light market. Using the industries most advanced underwater optics, the E7 creates the coveted OceanLED light blade effect, cutting through water like a knife. For those looking for the ultimate underwater light for larger vessels, with tricky hull angles, look no further.

Superior Protection, Total Peace of Mind

The Explore E7 underwater light has been rigorously tested to IP69K, the highest protection standard available. The forged marine-grade aluminum bronze housing and specialist toughed colourless glass create a fortress of strength. The addition of advanced seals makes the E7 virtually bullet-proof, ensuring extended lifespans.

Easy Light Maintenance & Replacement

The XFM flush mount design of the E7 allows light cartridges to be serviced and replaced with ease, when the boat is still in the water. The light cartridge simply slides out the back of the mounting tube, and slots back in. Servicing and replacing your underwater lights has never been easier.
