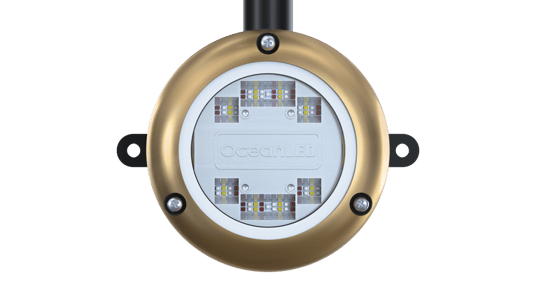

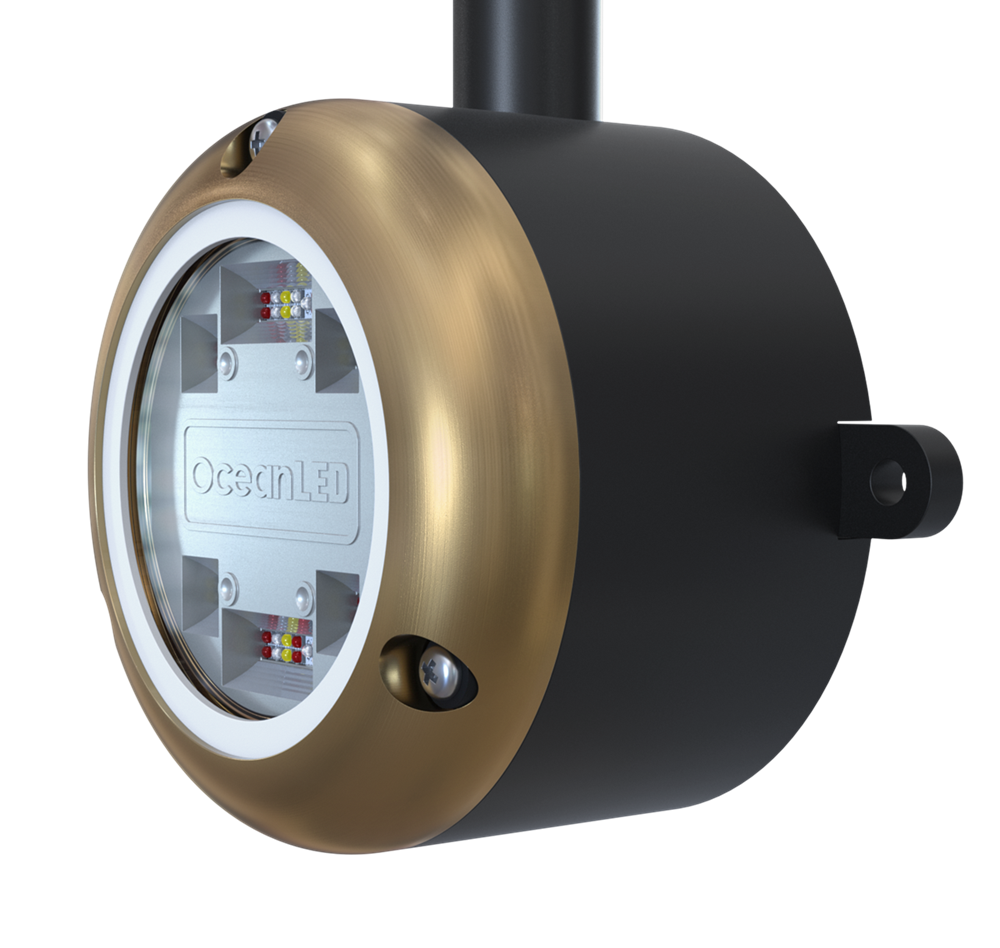

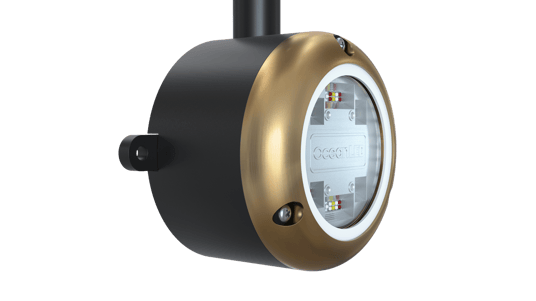

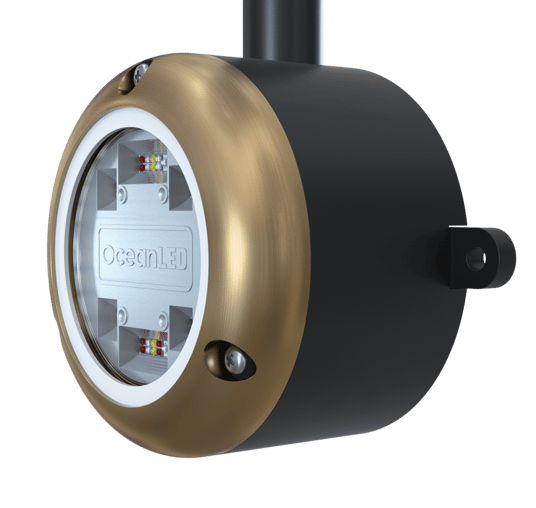

Sport Dock Light Series
The Sport Dock Light is the ideal solution for creating stunning lighting scenes around your dock or boat lift. Based on our industry leading Sport Light range, the OceanLED Dock Light comes equipped with our most advanced underwater optics, creating the coveted OceanLED light blade.
Capable of lighting huge areas, which would usually require a greater number of lights, the Sport Dock Light offers the ideal solution for residential and commercial properties.

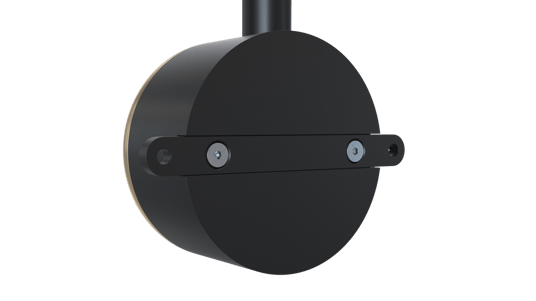

Available with a static fixing bracket or with our unique Easy-Clean swing arm bracket. The clever Easy-Clean bracket design allows hassle free access to each light for cleaning.






SKU | Description |
---|---|
012105W | Sport Dock Light Ultra White (S3116d) |
012104B | Sport Dock Light Midnight Blue (S3116d) |
012106BW | Sport Dock Light Dual (S3124d) |
012107C | Sport Dock Light Multi Colour (S3166d) |
Product Highlights
The combination of incredible performance and easy cleaning access means users can benefit from significant cost savings. Buying fewer lights to begin with, using less electricity by running fewer lights, and ensuring continued performance with regular cleaning.
Technical Details & Documents
-
Fixture Lumens Up To 5,000 IP Rating IP69K Minimum-Maximum operating voltage DC 20-32V DC Current / Amp draw (DC) 24V DC 1.7A Driver type Internal -
Total Weight 1.2kg Cable Length 32.8ft (10m) Material AB2 Aluminium Bronze -
Dock spacing 5-10’ (1.5-3m) Installation depth (To top of fixture) 12” (30cm) -
Sport DockLight Floating Kit 012108 4 Way DC Power Junction Box 019901 OceanLED 24V DC (150W / 6.3A) Dock Light Power Supply 001-600072 OceanLED 24V DC (320W / 13.3A) Dock Light Power Supply 010932

Advanced Underwater Optics
The underwater dock light range benefits from our most advanced underwater optics. Specifically designed by our in-house team of expert engineers to supercharge performance in our superyacht range, and now part of the dock light range. The optics focus the light to create a blade, that cuts through the water, even in areas where your dock might suffer from poor water quality. The result is a biblical performance boost, and incredible lighting effects for your dock.

Easy Cleaning & Maintenance

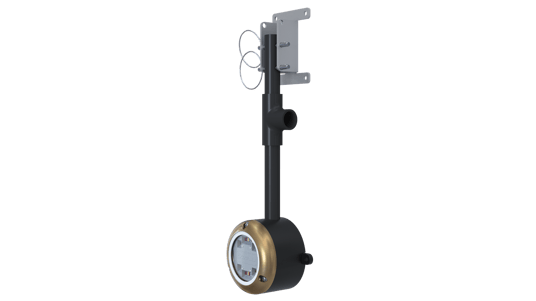

The advanced Tritonium coating all our underwater lights use provides long lasting protection and helps to ensure any marine build-up can be removed easily. The addition of the Easy-Clean swing arm ensures hassle free access to each individual light, by allowing each light to be raised up out of the water for regular cleaning and inspection from dry land.

Unrivalled Quality & Tested to IP69K
Our dock lights have been rigorously tested to IP69K, the highest protection standard available, to ensure your complete peace of mind. The forged marine-grade aluminum bronze housing and specialist toughened colourless glass, provide an extremely tough outer surface. The addition of advanced seals make our underwater dock lights the most robust and long-lasting underwater dock lights available anywhere.

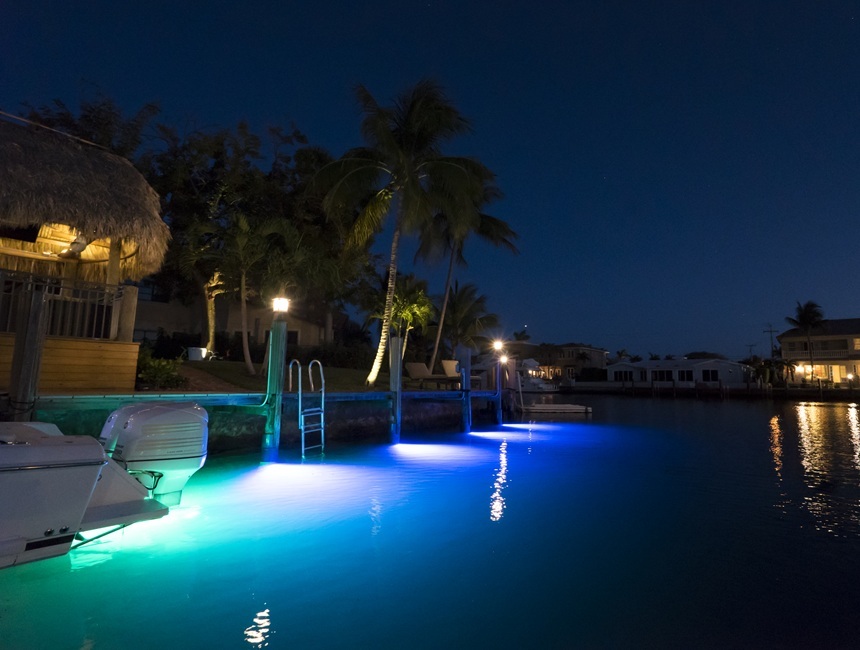

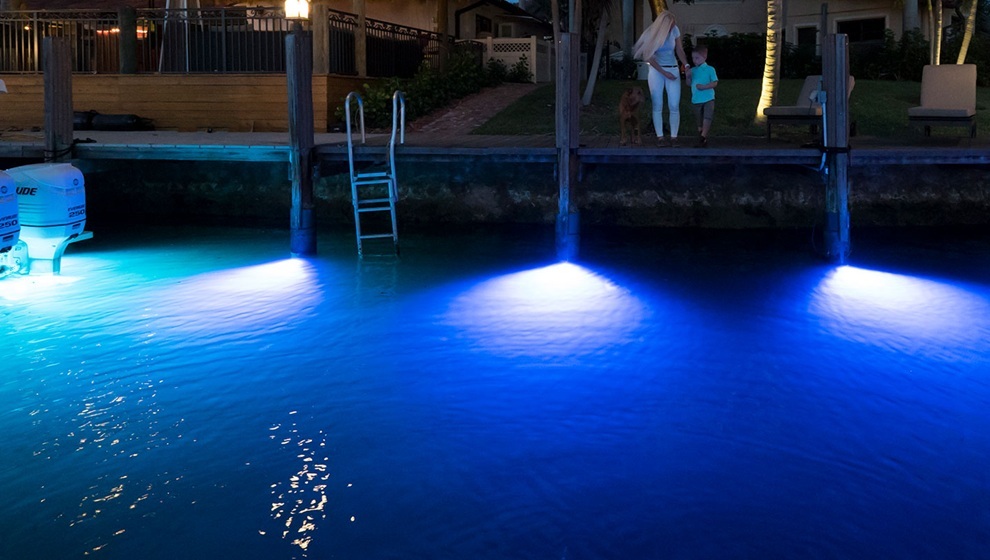

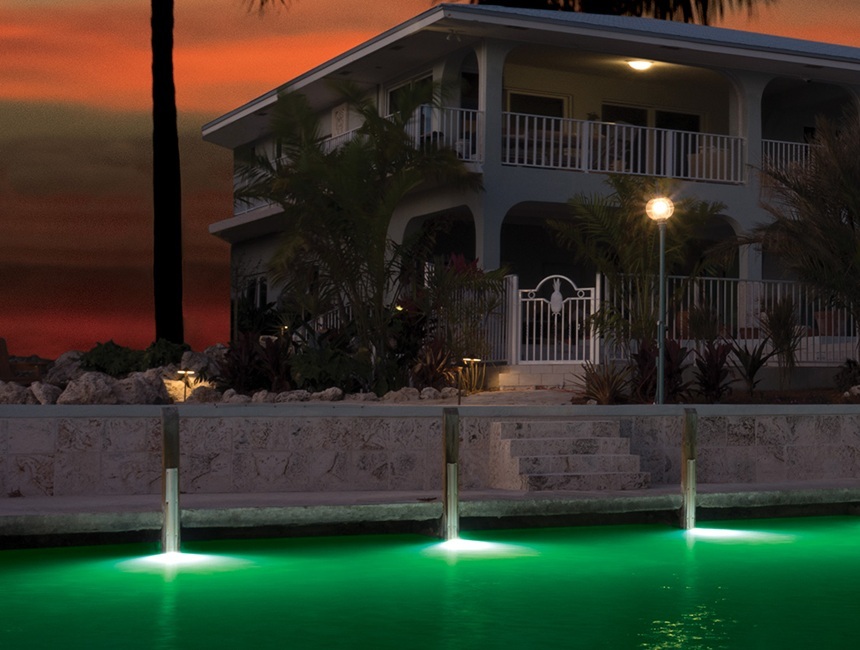

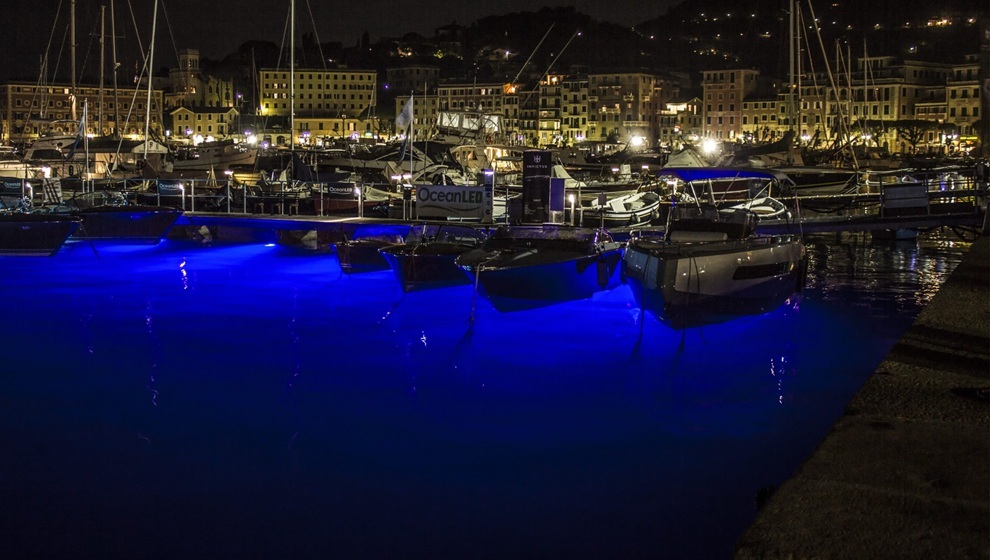

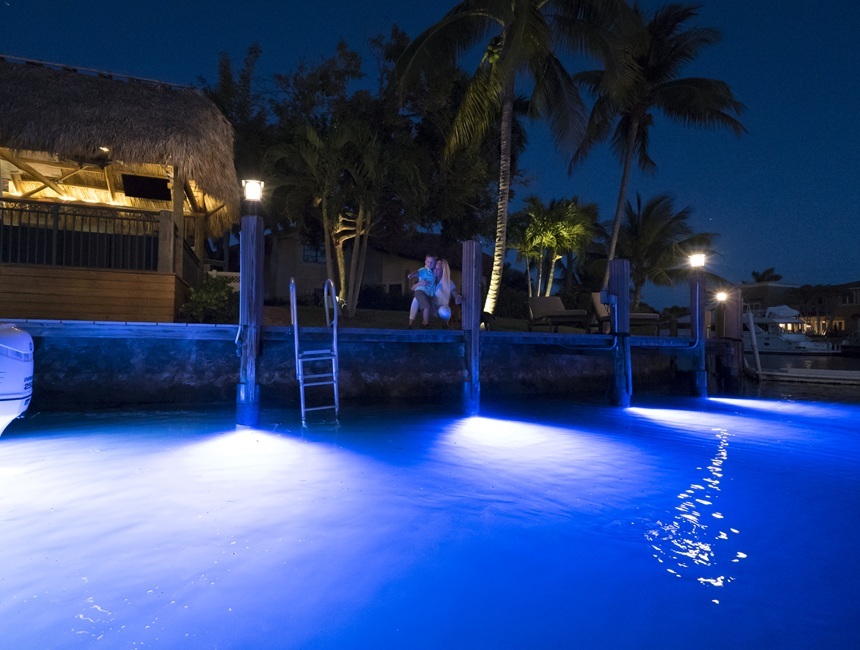

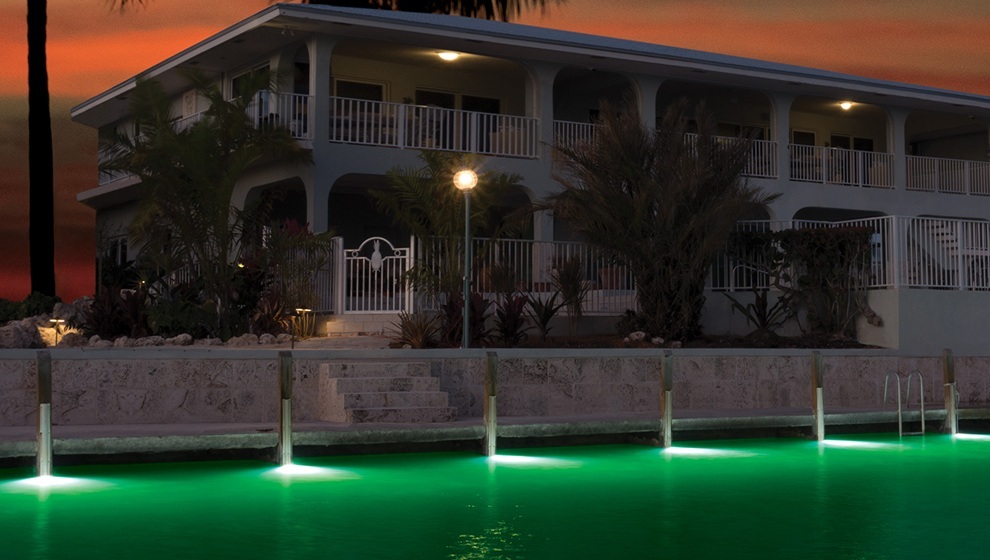

Gallery
