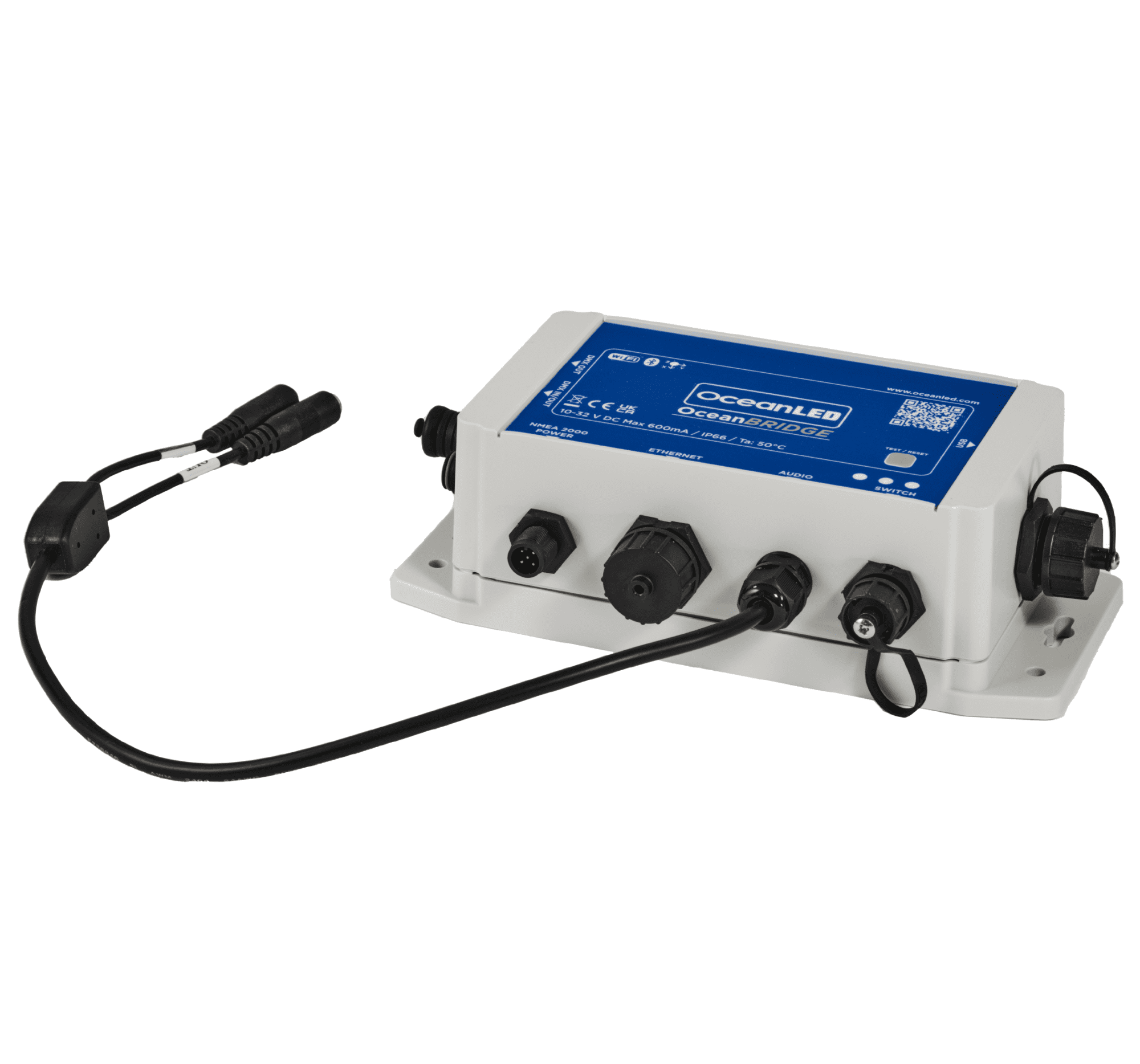

OceanBridge Multizone Lighting Controller

Overview

The OceanBridge is a patented multizone lighting controller, designed specifically for controlling all of your boat’s lights from an MFD, smartphone, or tablet easily. This innovative system allows you complete control of the entire OceanLED range of lights and accessories, as well as most third-party (DMX or on/off) DC-powered lights. The OceanBridge gives you complete control, of colour change, music sync, colour fade, colour transitions, brightness, zone creation, and our patented movement-to-colour functionality.

Overview

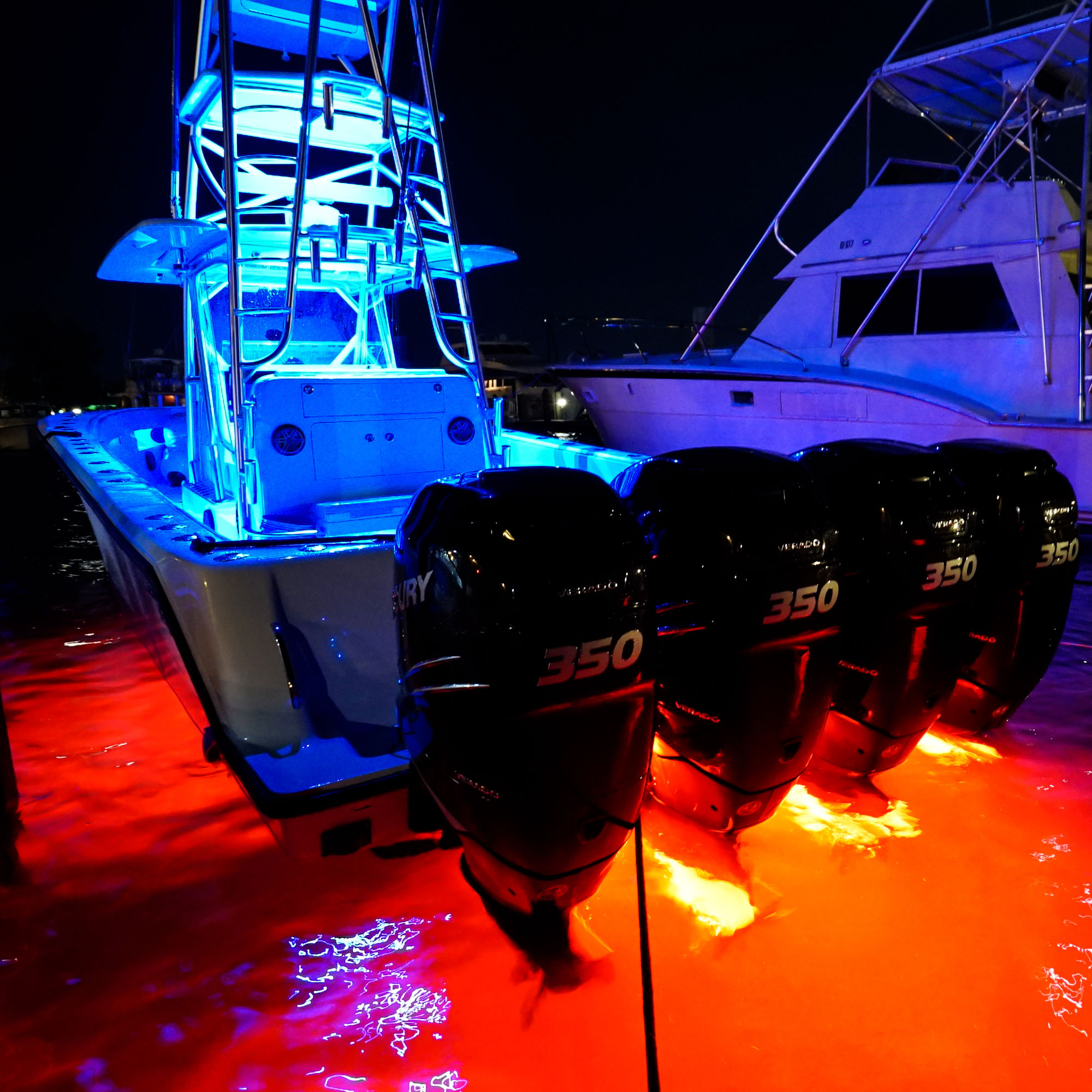

IDEAL FOR ALL TYPES OF BOATS

IDEAL FOR ALL TYPES OF BOATS

At OceanLED we understand the need to control all your boat lights from a single interface. Whether you have a small rib, large sport fishing boat, sailing yacht or motor cruiser, the OceanBridge ensures easy and seamless control. The small unit is quick to install and doesn’t require much space. Control is easy via your MFD, or if your boat isn’t equipped with an MFD, simply control your lights via your smartphone or tablet, thanks to the integrated Wi-Fi module.

CUSTOM SCENE & ZONE CONTROL

With the OceanBridge, you have the ability to create an incredible 10 lighting zones as standard and up to 10 lighting scenes. No matter how large your vessel is, the agility of fully customisable control means the possibilities are almost endless. OceanBridge scenes allow you to save pre-set lighting colours and modes, which can be easily assigned to any zone. Users can set our unique sweep scene mode to any zone using lights of the same type, creating the ‘Knight Rider’ effect. The additional flexibility of adding up to four instant-on switches means control can be tailored to specific areas of your boat.

CUSTOM SCENE & ZONE CONTROL
CONTROL LIGHTS & ACCESSORIES EASILY

CONTROL LIGHTS & ACCESSORIES EASILY

The advanced OceanBridge system allows you to create and control a lighting system with up to 64 (DMX or on/off) lights at one time, even non-OceanLED lights can be added to the system. With the use of splitters, the system can be expanded to over 150 lights. Plug-and-play control compatibility is ensured, thanks to the systems NMEA 2000 compatibility and supporting MFD network connectivity. You now have complete flexibility in one system.

INTELLIGENT LIGHTING COMMANDS

The OceanBridge makes syncing your underwater and onboard lights to music effortless. With the built-in AUX socket or via Bluetooth audio connection, you can set light colours and modes to automatically match music, using the base, midtones, and treble. Alternatively the unique addition of the built-in gyroscope allows our system to go even further. Our patent-pending design allows you to set your lights to change with the movement of your boat. Our timer function goes a step further, allowing you to trigger specific scenes at set times of the day or night.

INTELLIGENT LIGHTING COMMANDS
UNIVERSAL COMPATIBILITY AND CONTROL

UNIVERSAL COMPATIBILITY AND CONTROL

The OceanBridge is compatible with all major MFD units, including Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno. We’ve built the OceanBridge with complete accessibility in mind, no matter your boat, your MFD or your lights, the OceanBridge is your complete control solution.

10 Lighting Zones

10 Dynamic Scenes & Zones

Universal Compatibilty

Universal Compatibility

Wave Motion Mode

Wave Motion Control

OceanBridge Multizone Lighting Controller

Features

  • Colour Control Colour Control
  • Expandable System Expandable System
  • Touch Sensitive Touch Sensitive
  • Universal Compatibility Universal Compatibility
  • 10 Dynamic Scenes 10 Dynamic Scenes
  • 10 Lighting Zones 10 Lighting Zones
  • Dynamic Audio Control Dynamic Audio Control
  • Wave Motion Mode Wave Motion Mode

SKU / Description

SKU Description
013201 OceanBridge Multizone Lighting Controller

Technical

Water Protection Rating IP66
Power Consumption 6W (500mA @12V DC)
Operating Voltage 12/24V DC (Max 32V DC)
Power Input NMEA 2000 Connector Port
Input Cable Glands IP68
Output Cable Glands IP68
Wi-Fi Built-In
External Switch Inputs Supports Four External Switch Inputs
Bluetooth Built-In
On-board Sensors Gyroscope Sensor & Thermal Sensor
Operating Temperature -10°C to 50°C ambient
Network Connections NMEA 2000 connection & Ethernet connection
Audio 1 x Audio-In 3.5mm | 1 x Audio-Out 3.5mm
Firmware Release Version 1.5.2

Physical

Dimensions: 210mm x 91m x 65mm
Weight: 490g
Material Robust Polycarbonate

Accessories

013203 OceanBridge - Switch Input Cable
013202 OceanBridge Power Cable
013204 OceanConnect
013205 2-Way DMX Junction Box
