Explore XFM E7

Overview

Explore XFM E7 is the latest addition to OceanLED’s Explore range. This compact, easy to install product builds on the technology found in the highly successful E6 range and offers a unique new optical system.

The Explore XFM E7 packs a powerful 11,000* fixture lumens into a low profile, Xchangeable Flush Mount body with Dual Blue/White and RGBW light options.

Overview
First optically angled underwater light for GRP Boats

First optically angled underwater light for GRP Boats

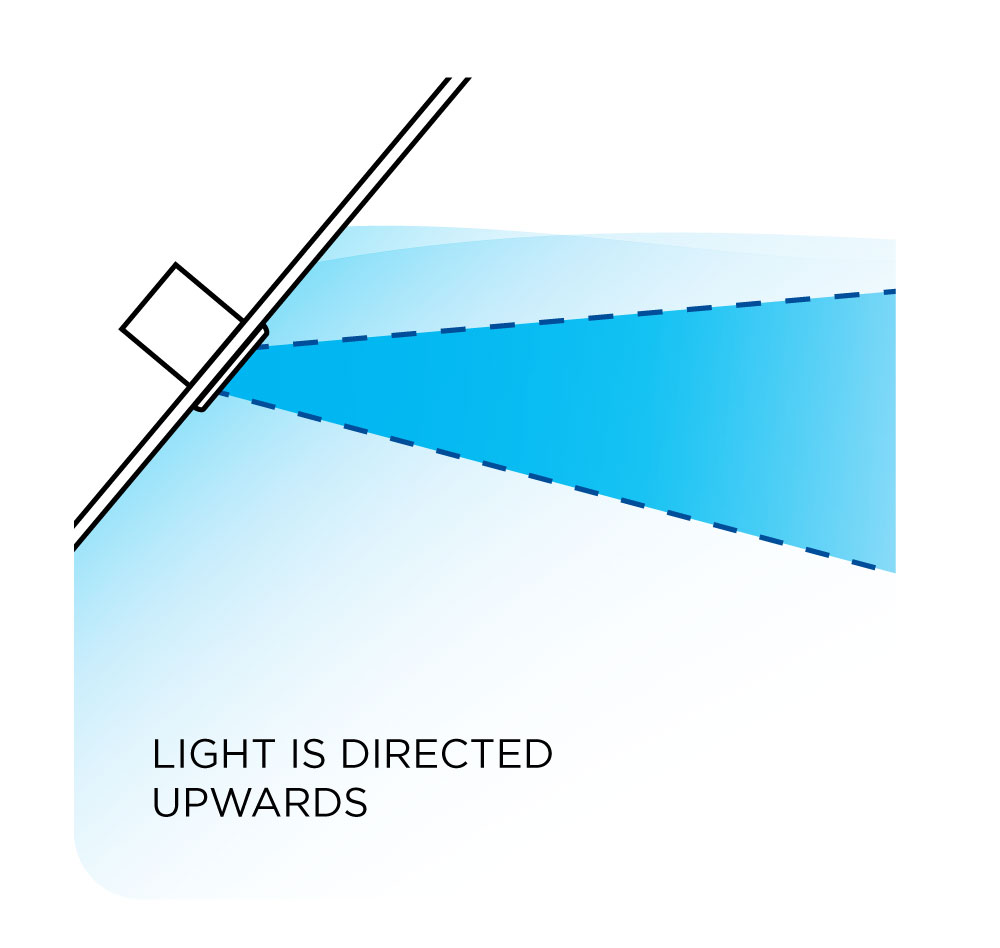

XFM E7’s angled beam produces a defined blade of light that penetrates the water parallel to the surface, illuminating a more significant area with minimal light loss and maximum penetration, providing effective underwater XFM lighting for yachts with a varying hull angle that require a flush-mounted light.

The XFM E7 is the first underwater light that offers up to a 50˚ angle using reflectors, inside a single 0˚ XFM housing for sloping hulls on GRP yachts and boats.

Superior light distribution due to advanced, innovative new optics

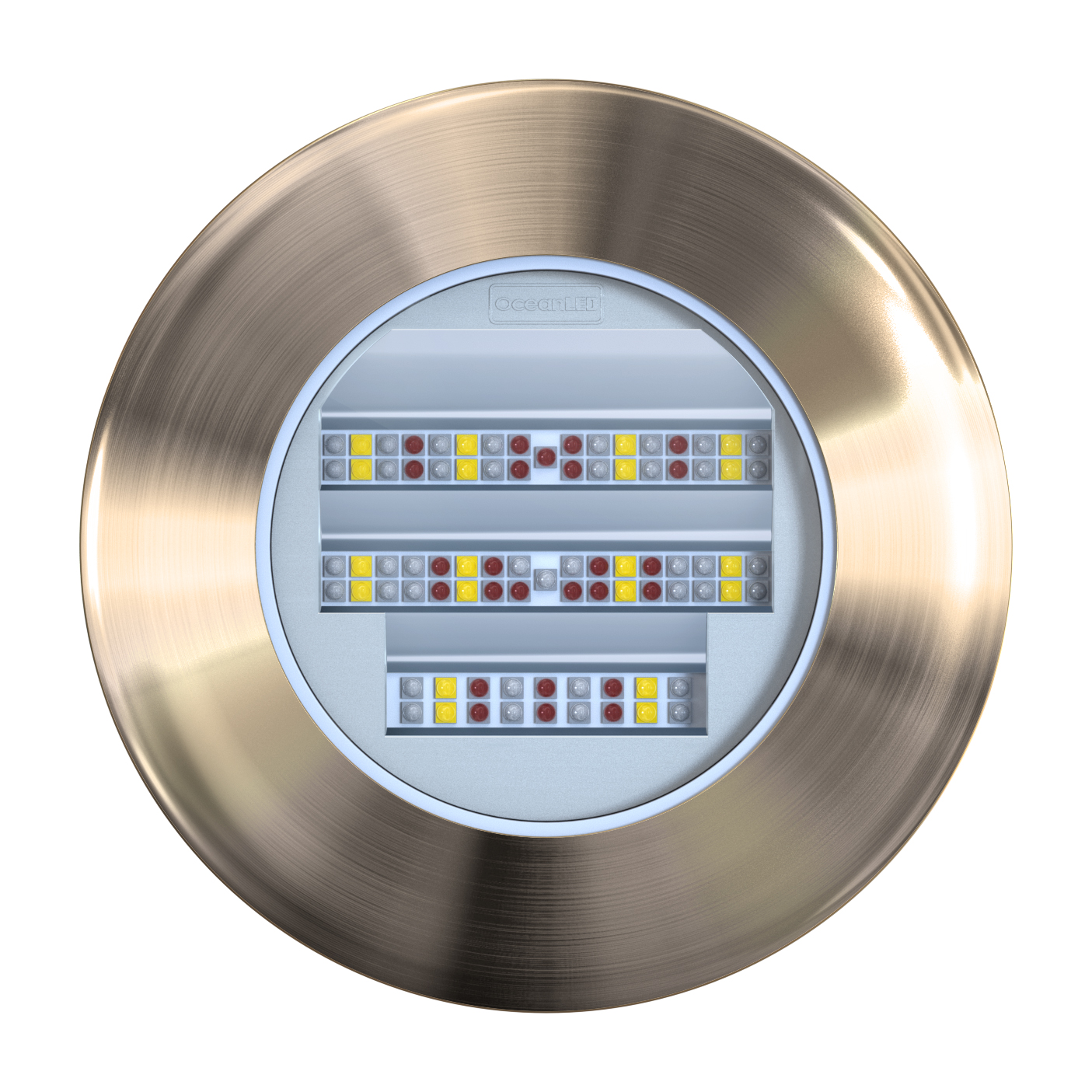

The Explore XFM E7 comes in a choice of Dual Ultra White / Midnight Blue or RGBW Colours DMX.

The combination of E7’s 11,000 Fixture Lumen output and the advanced angled optics result in an amazing in-water effect, achieving a highly desirable halo of light around the boat that accents a yacht’s exterior lines and imposing position in the water, without any loss of beam definition.

The defined, 90˚ angle of the beam from above (looking down), delivers a halo effect around the yacht with minimal dark space near the hull when spaced effectively around the yacht.

Superior light distribution due to advanced, innovative new optics
Choice of Controllers

Choice of Controllers

The OceanLED Explore E7 has a variety of ways you can control the lights, choose from the options below:

Switch / Push button:   Consult the installation manual for more information

Remote Control:   OceanDMX RC Controller kit

DMX Control Panel:  OceanDMX TP     /    OceanDMX WTP Plus



IP69k Protection

As part of our continuous strive for delivering the highest quality products to our customers, the Explore XFM series is now certified to the highest achievable rating of protection against water ingress, also known as IP69k.

IP69k goes one step further than the industry standard IP68, the rating for continuous immersion in water. IP69k gives our customers total peace of mind when choosing the best possible solution for their yacht.

Reduced Installation Time

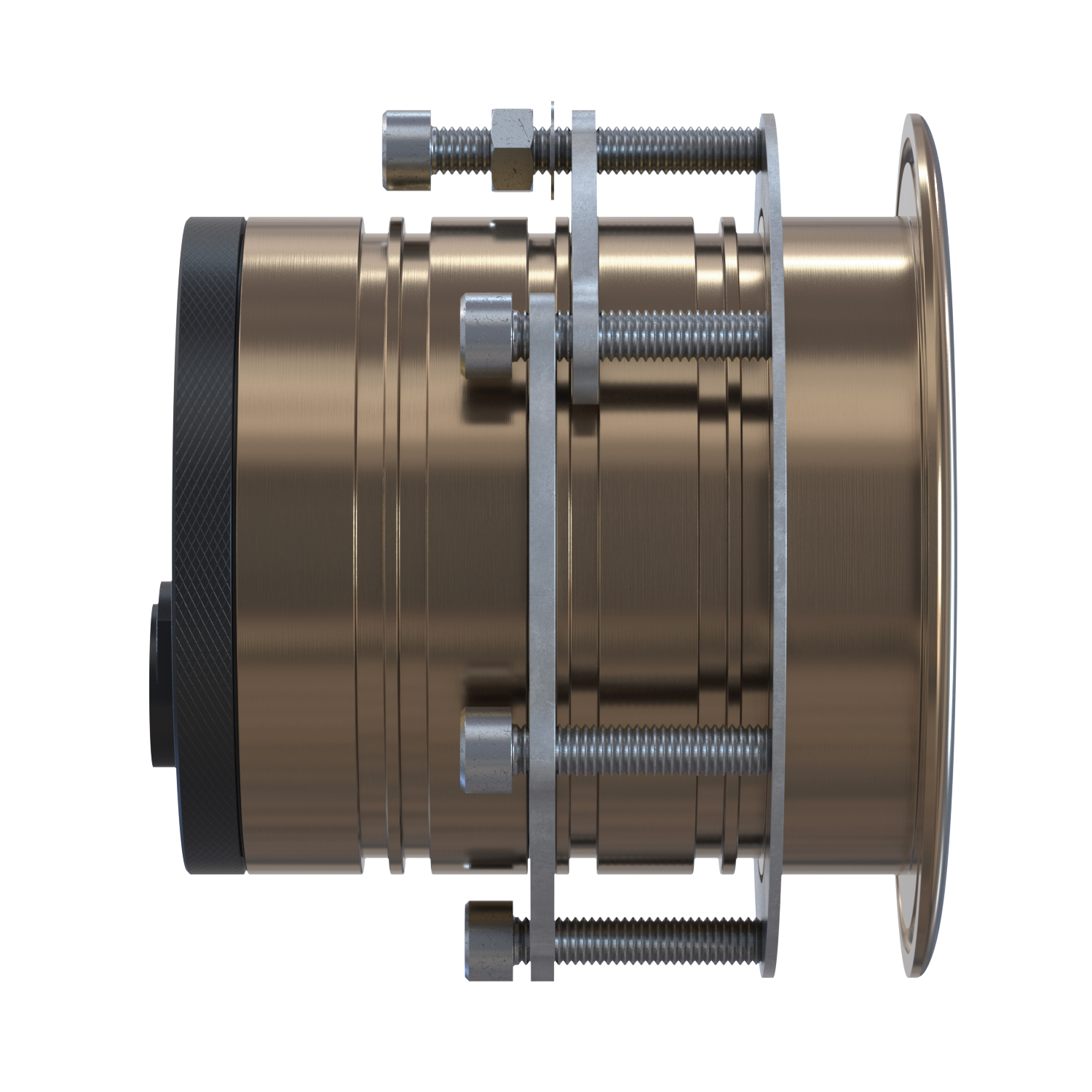

All aspects of the design including the clamping kit make installation quicker and simpler.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

Reduced Installation Time

Superior Protection

The Explore Series Rear Enclosure Kit fits neatly to the rear of the Explore XFM E3, E6 or E7 and provides protection from temporary submersion inside the hull. As well as a great choice for new installations, it can also be easily retrofitted to any existing Explore XFM installation.

The Explore XFM Rear Enclosure gives customers total peace of mind when choosing the best possible solution for their yacht.

Superior Protection. Total Peace of Mind.

50degBeam

Up to 50˚ projection angle to match the shape of the hull.

benefit beam

A wide-angled, focused beam lights up a large area of water, flooding it with light.

benefit-wrench

Internal driver removes the need to install cabinets

Explore XFM E7

Features

  • 90° Top Beam 90° Top Beam
  • Up to 11,000 Fixture Lumens* Up to 11,000 Fixture Lumens*
  • 20° Side Beam 20° Side Beam
  • Rectangular Beam Rectangular Beam
  • 10° to 50° Angle Options 10° to 50° Angle Options
  • Compact design and built in driver.
  • Reduced installation time.
  • Simple toggle control.
  • Fish strobe mode.
  • Ultra low profile outer bezel.
  • Control by switch or by DMX.
  • IP68 + IP69k Certified
  • Optional Rear Enclosure Kit

Colours Available

  • Midnight Blue / Ultra White
  • Multi-Colour

SKU / Description

SKU Description
E7019BW Explore XFM E7 Dual Blue / White XFM 10°
E7029BW Explore XFM E7 Dual Blue / White XFM 20°
E7039BW Explore XFM E7 Dual Blue / White XFM 30°
E7049BW Explore XFM E7 Dual Blue / White XFM 40°
E7059BW Explore XFM E7 Dual Blue / White XFM 50°
E7019CD Explore XFM E7 Colours XFM 10°
E7029CD Explore XFM E7 Colours XFM 20°
E7039CD Explore XFM E7 Colours XFM 30°
E7049CD Explore XFM E7 Colours XFM 40°
E7059CD Explore XFM E7 Colours XFM 50°
