V-SERIES COLOURS HD GEN2 | AFTERSALES ONLY

Overview

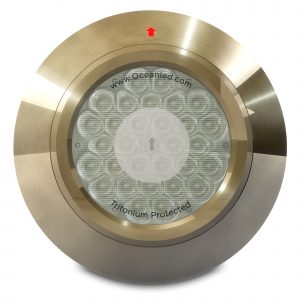

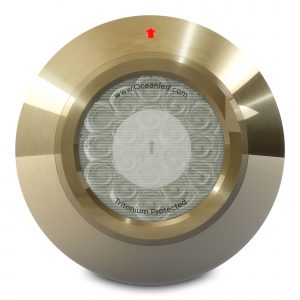

The V-Colours HD light offers a dynamic secure future proof concept for underwater lighting specifically for GRP hulled superyachts and can be used on medium sized aluminium and steel hulled yachts with the use of an isolating delrin sleeve.

The V Series benefits from bespoke optics that control the output of light into an elliptical beam, giving a much more defined spread and penetration through the water than most other underwater LED lights.

Please Note: This product is only available to support customers with aftersales only. The Pro Series XFM product range is no longer supported for new installations. Please talk to our team for further clarifications.

Overview
Xchangeable Flush Mount

Xchangeable Flush Mount

XFM models, or Xchangeable Flush Mounts, are just that – they’re exchangeable without hauling should servicing ever be needed.

For metal hulls, the V-Colours HD can be used with the addition of a Delrin Isolating Sleeve to negate any dissimilar metal corrosion.

Pick A Colour. Any Colour.

OceanLED Colours Superyacht underwater lights provide the ability to create any desired colour scene for your yacht.

Choose from a limitless colour palette to best suit the yachts ambience and maximise the lighting effect in varying water conditions, or enhance a party theme/atmosphere or simply change the colour for fun!

V-SERIES COLOURS HD GEN2 | AFTERSALES ONLY

Features

  • 60° Top Beam 60° Top Beam
  • Up to 14,000 Fixture Lumens Up to 14,000 Fixture Lumens
  • 20° Side Beam 20° Side Beam
  • Elliptical Beam Elliptical Beam
  • Unique ability to change the fixture in the water
  • DMX Lighting Control
  • Wider Diffused Beam Option
  • Plug & Play
  • Factory Sealed Unit
  • No Breakable Parts
  • Tritonium™ Lens

Colours Available

  • Multi-Colour

Please request a quote for bespoke Superyacht pricing.

Technical

Lumens 14300 - 24500
Fixture lumens 8400-14000
Typical LED life expectancy 40,000+ Hour Life
Input Voltage 110/240V AC
Min / max operating voltage 90 - 270
Current / Amp Draw 110V AC 2.5A / 240V AC 1.1A
Power consumption 275 watts

Mounting Recommendations

Hull material GRP/Fiberglass
Hull material with Delrin Isolation Sleeve Aluminium/Steel
Recommended spacing 1.2-2.4m (4-8’)
Installation depth (to top of fixture - tanks at 50%) 250-300mm (10-12”)
Minimum space required from back of fixture inside the yacht to facilitate exchange 140mm

Physical

Lighting 18 quad powered RGBW LED collimated light engine
Diameter 165mm
Overall Depth 230mm
Materials Aluminium / Bronze AB2
Hole Cut Out 101mm
Extension Cable Length 2m
Driver IP IP66
Cabinet IP Rating IP44
DMX Compatible Yes
Transient spike protection Yes
EMC Compliant Yes
