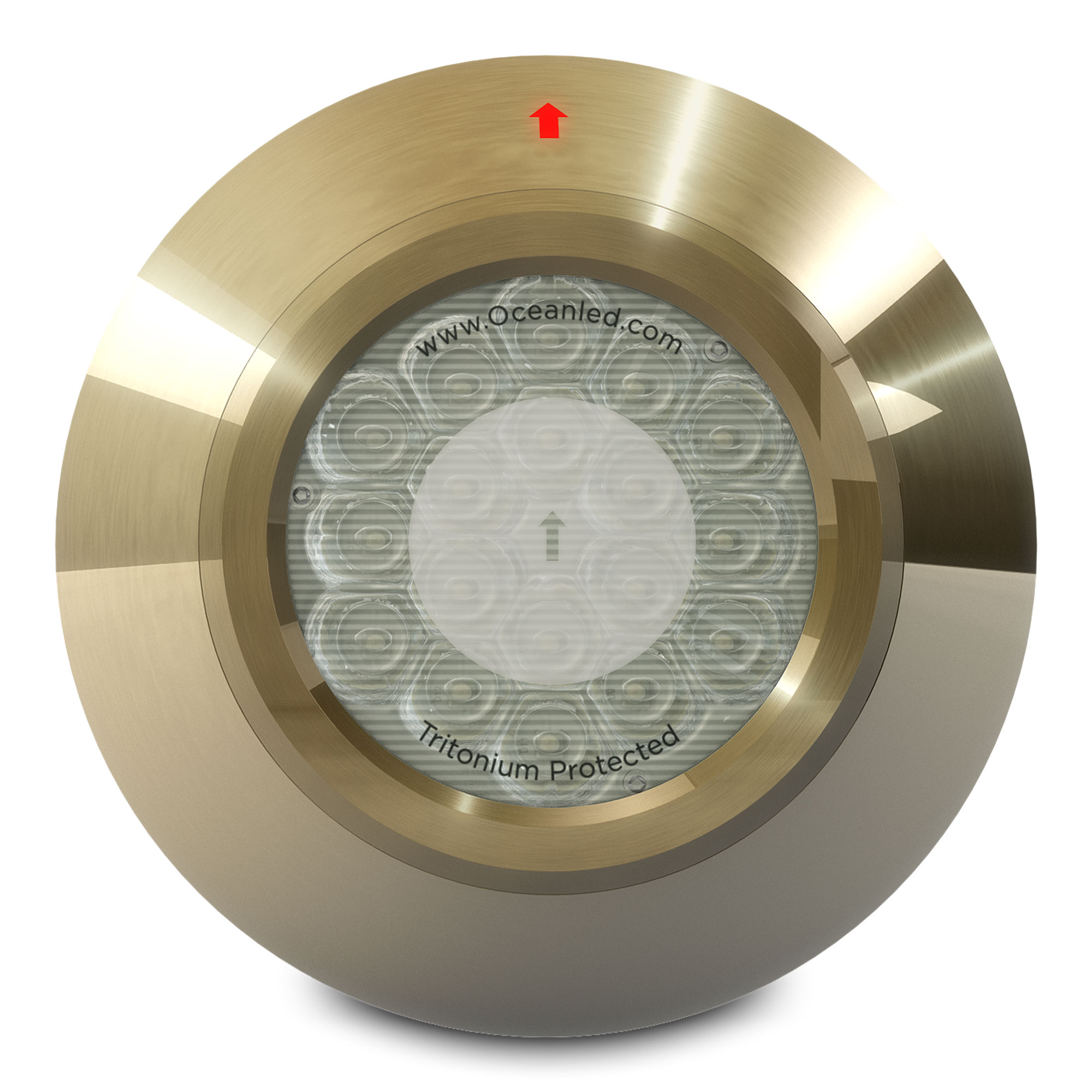

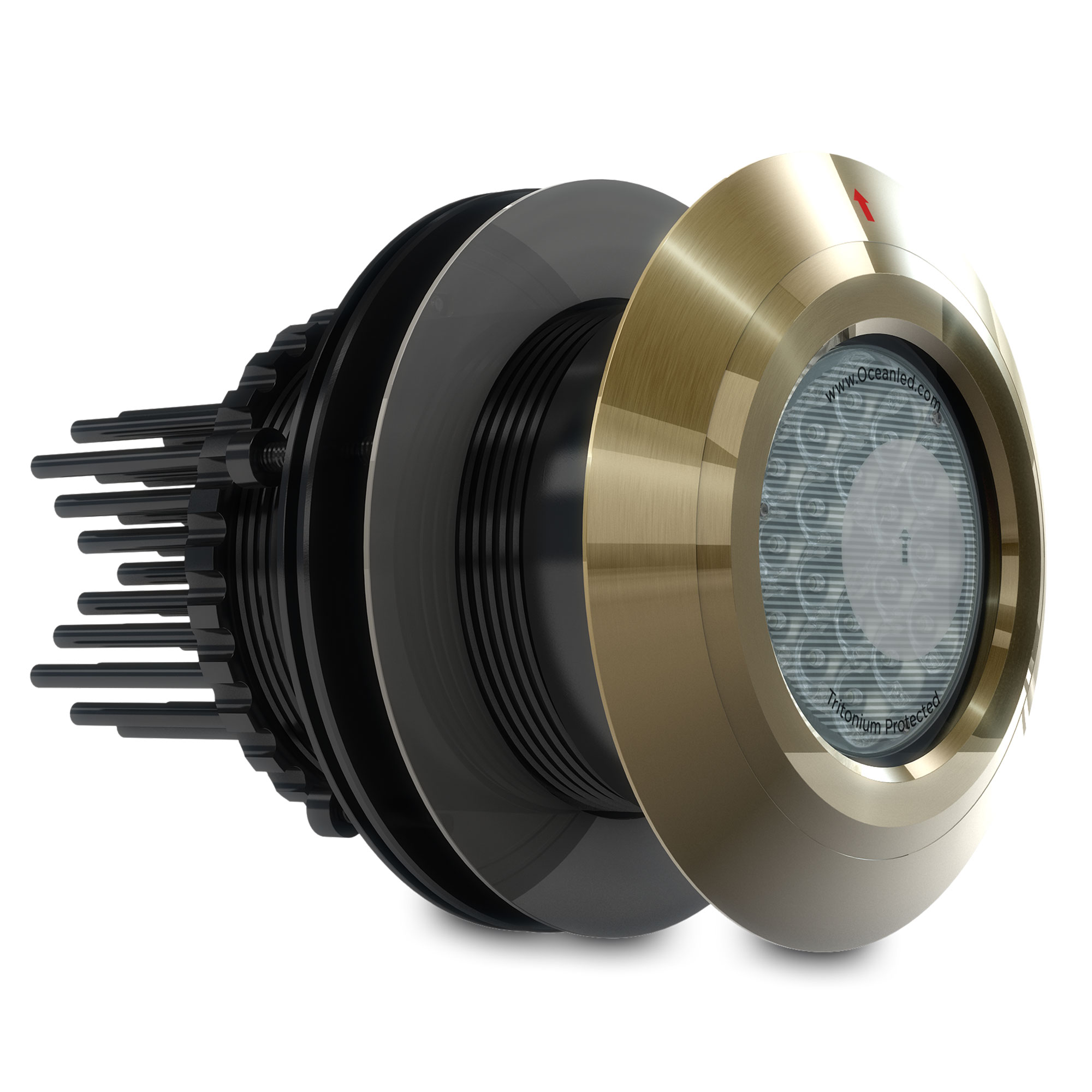

PRO SERIES COLOURS XFM HD GEN2

Overview

Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

Overview
Xchangeable Flush Mount

Xchangeable Flush Mount

XFM models, or Xchangeable Flush Mounts, are just that – they’re exchangeable without hauling should servicing ever be needed.

Pick A Colour. Any Colour

OceanLED Colours underwater lights provide the ability to create any desired colour scene for your yacht.

Choose from a limitless colour palette to best suit the yachts ambience and maximise the lighting effect in varying water conditions, or enhance a party theme/atmosphere or simply change the colour for fun

benefit-wrench

Exchangeable without hauling

optics

Use with OceanDMX to create your perfect light show

benefit-fish

Trusted by the world's leading boat builders and professional anglers to catch fish and help bring home the trophies

PRO SERIES COLOURS XFM HD GEN2

Features

  • 60° Beam Angle 60° Beam Angle
  • Up to 7000 Fixture Lumens Up to 7000 Fixture Lumens
  • 20° Beam Angle 20° Beam Angle
  • Elliptical Beam Elliptical Beam
  • Use with OceanDMX
  • Xchangeable from Inside the Hull
  • 100mm (4”) Hole
  • 110-240V AC
  • Aluminium Bronze AB2 Bezel
  • Plug & Play
  • Factory Sealed Unit

Colours Available

  • Multi-Colour

SKU / Description

SKU Description
001-500747 Pro Series Colours XFM HD Gen2

Technical

Lumens 11400
Fixture Lumens 7000
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage AC (AC/only) 90-270V AC
Current / Amp draw (AC/only) 110V AC 50/60HZ 1.1A / 230V AC 50/60HZ 0.5A
Driver type External

Mounting Recommendations

Boat size up to and over 65ft (20m)
Transom / Hull spacing 3-5’ (1-1.5m)
Transom quantity 2-6
Hull quantity 4+/side
Maximum hull thickness 3.5” (90mm)
Installation depth (to top of fixture) 10-12in (250-300mm)

Physical

Diameter of fixture 6.5” (165.1mm)
Profile (height) of fixture 0.54” (13.8mm)
Light Engine weight 3.6kgs (7.9lbs)
Driver weight 4.8kgs (10.6lbs)4.8kgs (10.6lbs)
Extension cable length (standard-hard wired to light) 6.5’ (2m)
Ethernet Colours Connection Cable 10’ (3m)
Hole cut-out for cable entry 4” (100mm)
Material Aluminium Bronze AB2
Lens Tritonium™ Optical Lens

Accessories

Delrin Isolation Sleeve for 2010/COLOURS XFM 001-500573
Locking Nut Kit for 2010 XFM 001-500398
2m (6.5’) Plug & Play Extension Cable (Gen2) 001-500753
6m (19.5’) Plug & Play Extension Cable (Gen2) 001-500754
IP68 Ethernet DIY Cap 001-500463
Pro Series HD Gen2 Colours Driver & Ethernet Connection Cable 001-500756
Ethernet Colours Connection Cable (3 Meter)(Included w/ COLOURS Driver) 001-500594
Colours Terminator Kit (Included with DMX Controller) 001-500467
Pro Series HD OceanDMX App Controller Kit 011705
DMX Touch Panel Controller (includes 1 Terminator Kit) 001-500596
DMX Wifi Touch Panel Controller (includes 1 Terminator Kit) 001-500598
